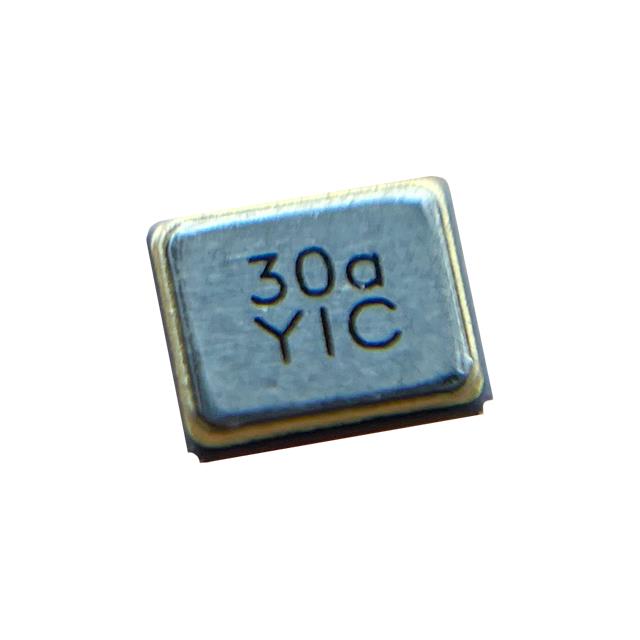

19.2M10PI/XT224-10
ActiveYIC
CRYSTAL 19.2MHZ 10PF SMD 2.5X2.0
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
19.2M10PI/XT224-10
ActiveYIC
CRYSTAL 19.2MHZ 10PF SMD 2.5X2.0
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 19.2M10PI/XT224-10 |
|---|---|
| ESR (Equivalent Series Resistance) | 150 Ohms |
| Frequency | 19.2 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) [Max] [z] | 0.03 in |
| Height - Seated (Max) [Max] [z] | 0.75 mm |
| Load Capacitance | 10 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.34 | |
| Digi-Reel® | 1 | $ 0.34 | ||
| Tape & Reel (TR) | 3000 | $ 0.34 | ||
Description
General part information
19.2M10PI/XT224-10
19.2 MHz ±10ppm Crystal 10pF 150 Ohms 4-SMD, No Lead
