Technical Specifications
Parameters and characteristics for this part
| Specification | RB-LYN-990 |
|---|---|
| Encoder Type | Absolute |
| Function | Servomotor |
| Gear Reduction Ratio | 0.26 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | 45 °C |
| Power - Rated | 2.4 W |
| RPM | 60 RPM |
| Termination Style | Connector |
| Torque - Max Momentary (oz-in / mNm) | 2944 mNm |
| Torque - Max Momentary (oz-in / mNm) | 403 oz-in |
| Type | DC Motor |
| Voltage - Rated [Max] | 12 V |
| Voltage - Rated [Min] | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 109.95 | |
Description
General part information

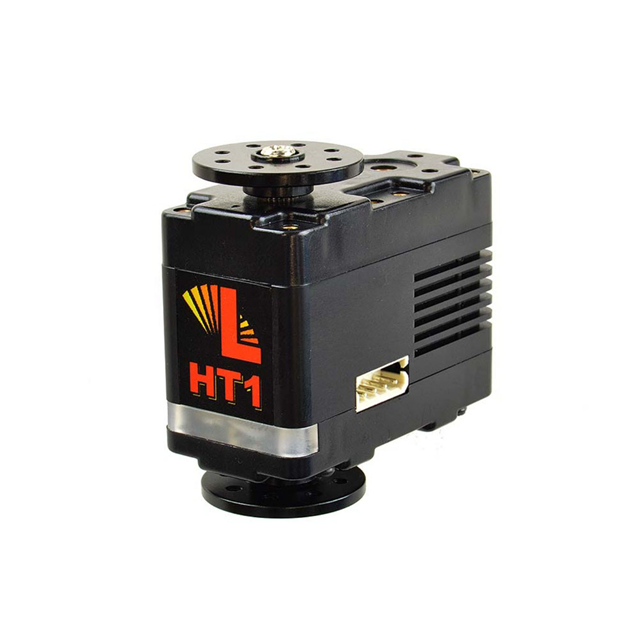

RB-LYN-990
DC Motor Servomotor 60 RPM 2.4W Absolute 6 ~ 12VDC
