KW1-563AGB
ActiveLuckylight
0.56'' 1-DIGIT 7SEG GRN TH DISP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KW1-563AGB
ActiveLuckylight
0.56'' 1-DIGIT 7SEG GRN TH DISP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KW1-563AGB |
|---|---|
| Color | Yellow-Green |
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 0.56 in |
| Digit/Alpha Size | 14.22 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 16 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 0.594 in |
| Package / Case | 10-DIP |
| Package / Case | 15.1 mm |
| Power Dissipation (Max) [Max] | 48 mW |
| Size / Dimension [x] | 17.1 mm |
| Size / Dimension [x] | 0.673 " |
| Size / Dimension [y] | 12.4 mm |
| Size / Dimension [y] | 0.488 in |
| Size / Dimension [z] | 0.315 " |
| Size / Dimension [z] | 8 mm |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 575 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 50 | $ 0.20 | |
| 100 | $ 0.18 | |||
| 500 | $ 0.17 | |||
Description
General part information
KW1-563AGB

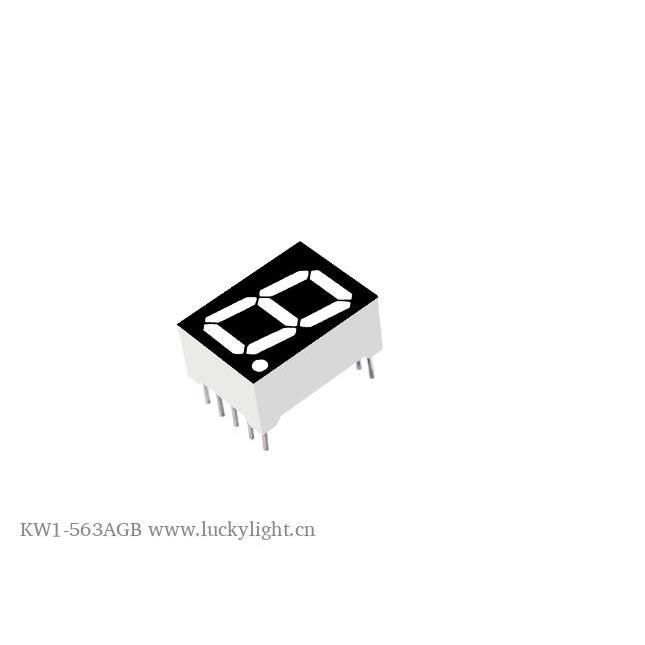

Display Modules - LED Character and Numeric Yellow-Green 7-Segment 1 Character Common Anode 2V 20mA 0.673" H x 0.488" W x 0.315" D (17.10mm x 12.40mm x 8.00mm) 10-DIP (0.594", 15.10mm)
