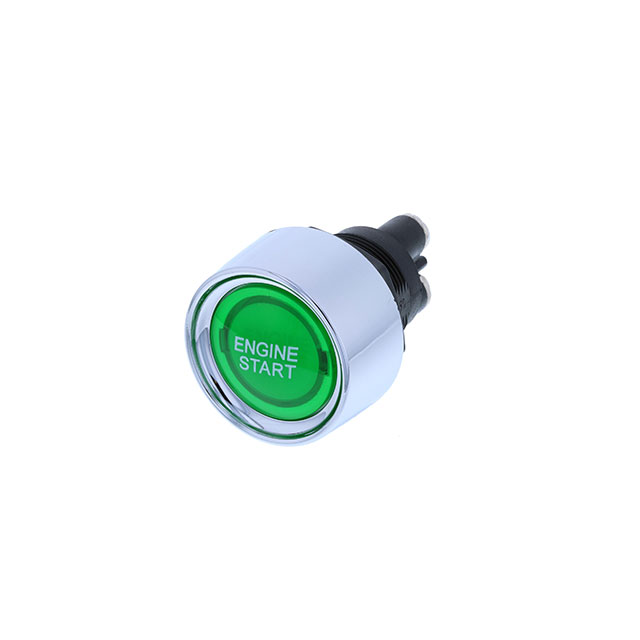

SA-1B-DC-3-GL-P
ActiveSwitch Components
SWITCH PB ENGINE START GRN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SA-1B-DC-3-GL-P |
|---|---|
| Actuator Marking | Engine Start Symbol |
| Actuator Type | Round, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Green |
| Current Rating (Amps) | 50 A |
| Electrical Life | 6000 Cycles |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 12 VDC |
| Mechanical Life | 10000 Steps |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 22 mm |
| Switch Function | Off-Mom |
| Termination Style | Screw Terminal |
| Type | Illuminated, Standard |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.54 | |
Description
General part information
SA-1B-DC-3-GL-P
Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
