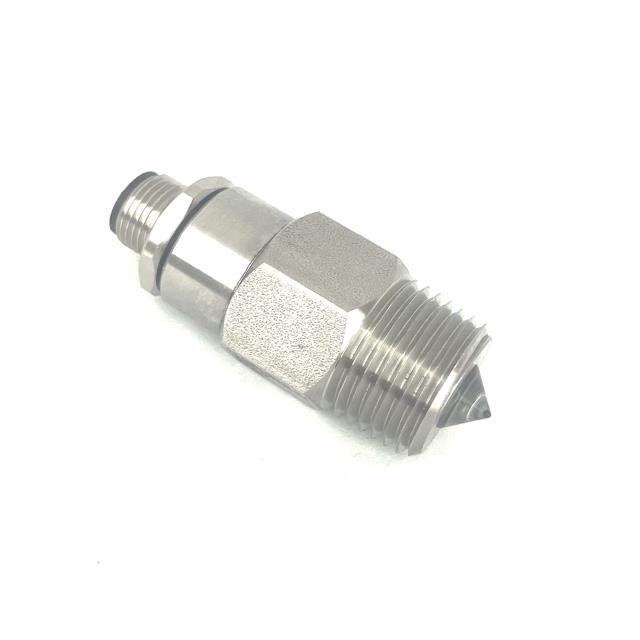

LLG810D324-005
ActiveSST Sensing Ltd.
SENSOR LEVEL DIGITAL
Deep-Dive with AI
Search across all available documentation for this part.
LLG810D324-005
ActiveSST Sensing Ltd.
SENSOR LEVEL DIGITAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LLG810D324-005 |
|---|---|
| Current | 7.5 mA |
| Material - Housing & Prism | Stainless Steel |
| Mounting Type | Threaded |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Push-Pull |
| Type | Liquid |
| Voltage Rating [Max] | 30 V |
| Voltage Rating [Min] | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 182.19 | |
| 10 | $ 167.01 | |||
Description
General part information
LLG810D324-005
Liquid Level Sensor Digital Push-Pull Output Threaded
Documents
Technical documentation and resources
No documents available
