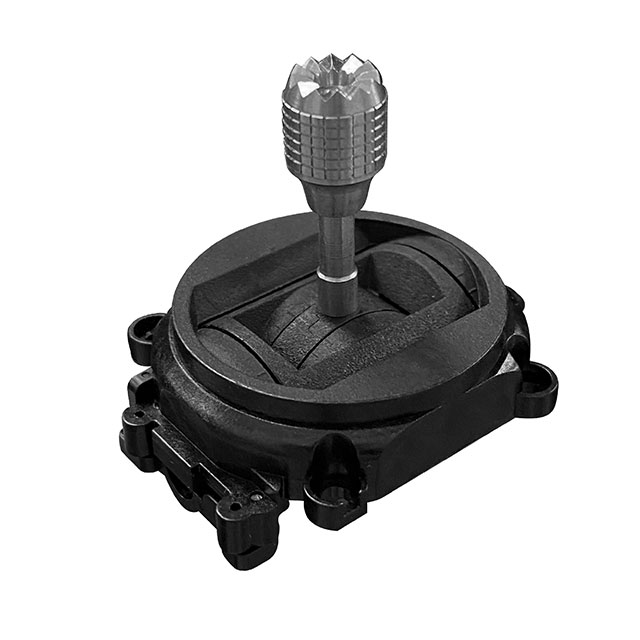

FJR35-N2B10KF0
ActiveFavor Electronics
JOYSTICK 10K OHM SGL AXIS TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FJR35-N2B10KF0
ActiveFavor Electronics
JOYSTICK 10K OHM SGL AXIS TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FJR35-N2B10KF0 |
|---|---|
| Adjustment Type | Top Adjustment |
| Axis | 1 |
| Mounting Type | Through Hole |
| Power (Watts) | 0.0125 W |
| Resistance | 10000 Ohms |
| Rotation Angle | 60 ° |
| Size / Dimension [x] | 32 mm |
| Size / Dimension [x] | 1.26 in |
| Size / Dimension [y] | 1.47 in |
| Size / Dimension [y] | 37.4 mm |
| Size / Dimension [z] | 36.7 mm |
| Size / Dimension [z] | 1.445 " |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.00 | |
| 100 | $ 14.00 | |||
| 300 | $ 13.00 | |||
Description
General part information
FJR35-N2B10KF0
1 Axis 10 kOhms Through Hole Joystick Potentiometer 60° 0.0125W
