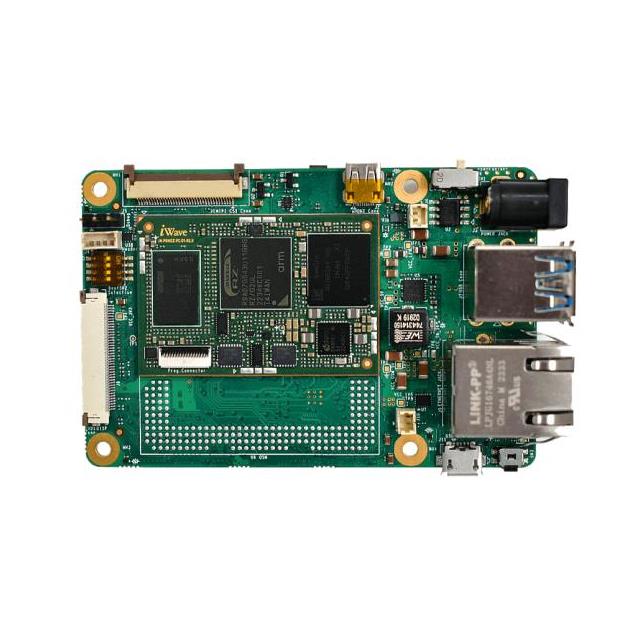

iW-G53S-OMFV-4D001G-E008G-BIA
ActiveiWave Global
RZ/FIVE PICO ITX SBC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | iW-G53S-OMFV-4D001G-E008G-BIA |
|---|---|
| Contents | HDMI Cable |
| Cooling Type | Heat Sink |
| Core Processor | ARM® Cortex®-A55, ARM® Cortex®-M33 |
| Expansion Site/Bus | UART, I2C, CAN, GPIO, ADC, PWM, RGB, SPI, JTAG |
| Form Factor | SBC |
| Number of Cores | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| RAM Capacity/Installed | 0 GB, 1 GB |
| Size / Dimension [x] | 3.37 in, 85.6 mm |
| Size / Dimension [y] | 2.224 in, 56.5 mm |
| Storage Interface | eMMC, SPI, microSD, QSPI, I2C |
| Watchdog Timer | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 406.60 | |
Description
General part information
iW-G53S-OMFV-4D001G-E008G-BIA
Single Board Computer 200MHz, 1GHz 1 Core 1GB/0GB RAM ARM® Cortex®-A55, ARM® Cortex®-M33
