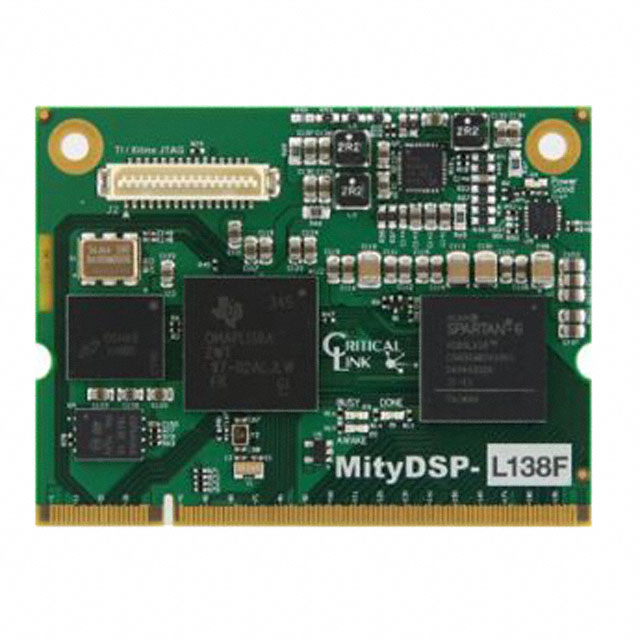

L138-DI-225-RI
ObsoleteCritical Link LLC
IC MOD ARM926EJ-S 375MHZ 8KB
Deep-Dive with AI
Search across all available documentation for this part.
L138-DI-225-RI
ObsoleteCritical Link LLC
IC MOD ARM926EJ-S 375MHZ 8KB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L138-DI-225-RI |
|---|---|
| Co-Processor | TMS320C674x (DSP), XC6SLX45 (FPGA), Spartan-6 |
| Connector Type | SO-DIMM-200 |
| Core Processor | ARM926EJ-S, OMAP-L138 |
| Flash Size [custom] | 8 MB |
| Flash Size [custom] | 256 MB |
| Module/Board Type | MPU, DSP, FPGA Core |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| RAM Size | 128 MB, 8 KB, 256 KB |
| Size / Dimension [x] | 67.6 mm |
| Size / Dimension [x] | 2.66 in |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Speed | 375 MHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
L138-DI-225-RI
MityDSP-L138F Embedded Module ARM926EJ-S, OMAP-L138 TMS320C674x (DSP), Spartan-6, XC6SLX45 (FPGA) 375MHz 8KB (Internal MPU), 256KB (Internal DSP), 128MB (External) 256MB (NAND), 8MB (NOR)
Documents
Technical documentation and resources
