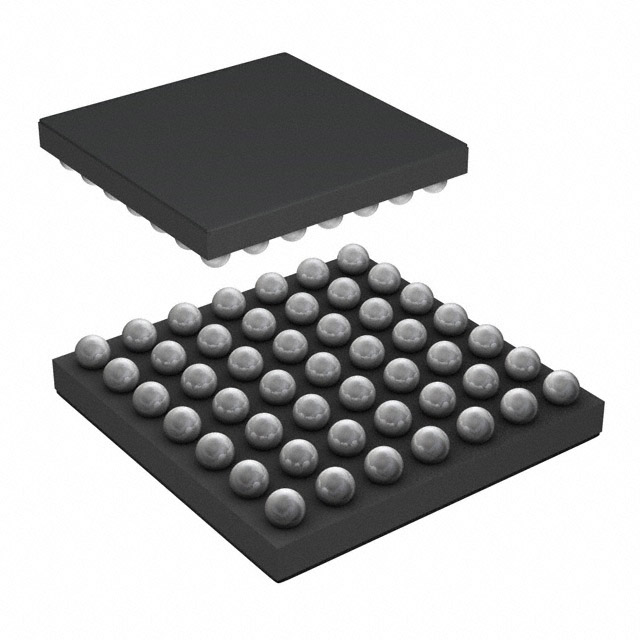

WM8962ECS/R
ObsoleteCirrus Logic Inc.
IC CODEC STER 49 BALL W-CSP
Deep-Dive with AI
Search across all available documentation for this part.
WM8962ECS/R
ObsoleteCirrus Logic Inc.
IC CODEC STER 49 BALL W-CSP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WM8962ECS/R |
|---|---|
| Data Interface | I2C, SPI |
| Mounting Type | Surface Mount |
| Number of ADCs / DACs [custom] | 2 |
| Number of ADCs / DACs [custom] | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | WLCSP, 49-WFBGA |
| Resolution (Bits) | 24 b |
| S/N Ratio, ADCs / DACs (db) Typ [custom] | 98 db |
| S/N Ratio, ADCs / DACs (db) Typ [custom] | 94 db |
| Sigma Delta | True |
| Type | Stereo Audio |
| Voltage - Supply, Analog [Max] | 2 V |
| Voltage - Supply, Analog [Min] | 1.7 V |
| Voltage - Supply, Digital [Max] | 2 V |
| Voltage - Supply, Digital [Min] | 1.62 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
WM8962ECS/R
Stereo Audio Interface 24 b I2C, SPI 49-WLCSP (3.59x3.98)
Documents
Technical documentation and resources
No documents available
