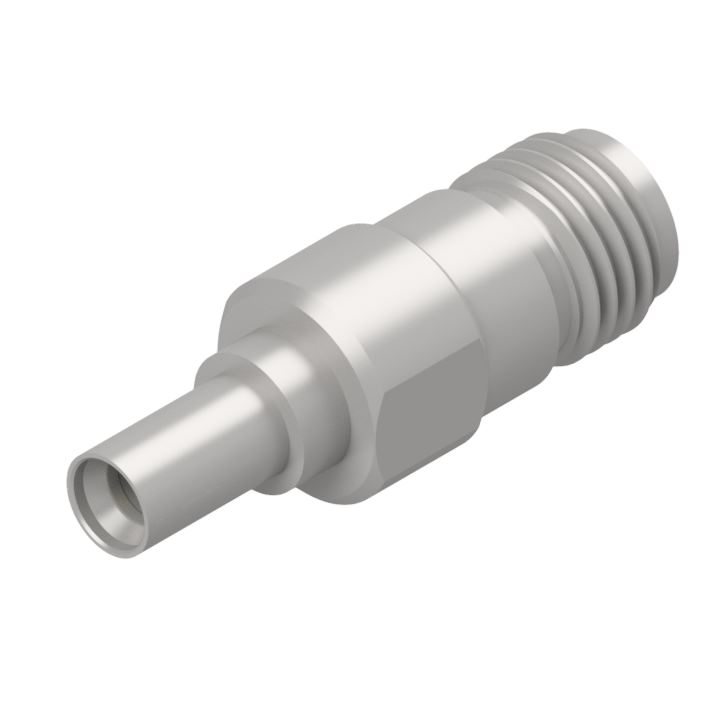

MADP-6536
ActiveMicro-Mode
ADAPT SMPM PLG TO SMA JACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MADP-6536
ActiveMicro-Mode
ADAPT SMPM PLG TO SMA JACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MADP-6536 |
|---|---|
| Adapter Series | SMA to SMPM |
| Adapter Type | Plug to Jack |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | Male Pin, SMPM Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Features | Full Detent |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 96.58 | |
| 10 | $ 88.63 | |||
| 25 | $ 85.22 | |||
| 50 | $ 82.38 | |||
| 100 | $ 77.83 | |||
Description
General part information
MADP-6536
Adapter Coaxial Connector SMA Jack, Female Socket To SMPM Plug, Male Pin
