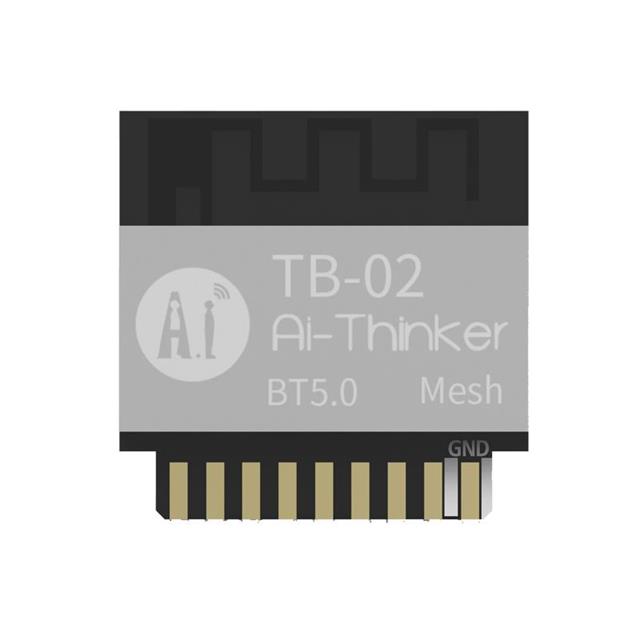

TB-02
ActiveAi-Thinker
RF TXRX MOD BT PCB TH SMD
Deep-Dive with AI
Search across all available documentation for this part.
TB-02
ActiveAi-Thinker
RF TXRX MOD BT PCB TH SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TB-02 |
|---|---|
| Antenna Type | PCB Trace |
| Current - Transmitting | 12.62 mA |
| Frequency | 2.4 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 13-SMD Module |
| Power - Output | 10 dBm |
| Protocol | Bluetooth v5.0 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -93 dBm |
| Serial Interfaces | SPI, PWM, GPIO, ADC |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.16 | |
| 10 | $ 2.83 | |||
| 25 | $ 2.54 | |||
| Digi-Reel® | 1 | $ 3.16 | ||
| 10 | $ 2.83 | |||
| 25 | $ 2.54 | |||
| Tape & Reel (TR) | 100 | $ 2.32 | ||
| 300 | $ 2.09 | |||
| 500 | $ 1.88 | |||
| 1000 | $ 1.58 | |||
| 2500 | $ 1.50 | |||
| 5000 | $ 1.44 | |||
Description
General part information
TB-02
Bluetooth Bluetooth v5.0 Transceiver Module 2.4GHz PCB Trace Surface Mount
