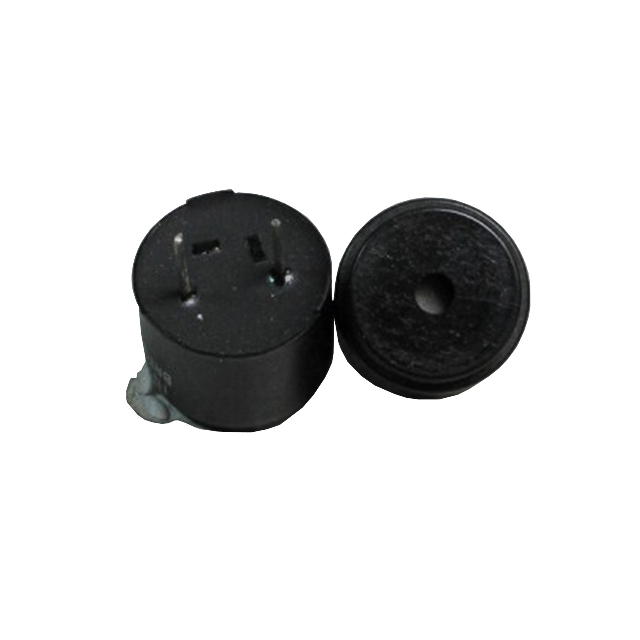

BRT1615P-06
ActiveInternational Components Corp.
BUZZER MAGNETIC 6V 16MM TH
Deep-Dive with AI
Search across all available documentation for this part.
BRT1615P-06
ActiveInternational Components Corp.
BUZZER MAGNETIC 6V 16MM TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BRT1615P-06 |
|---|---|
| Current - Supply | 40 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 2.048 kHz |
| Height - Seated (Max) [Max] [z] | 0.571 in |
| Height - Seated (Max) [Max] [z] | 14.5 mm |
| Input Type | DC |
| Mounting Type | Through Hole |
| Operating Mode | Continuous |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Size / Dimension [diameter] | 0.63 in |
| Size / Dimension [diameter] | 16 mm |
| Sound Pressure Level (SPL) | 90 dB |
| Technology | Magnetic |
| Termination | PC Pins |
| Voltage - Rated | 6 VDC |
| Voltage Range [Max] | 12 V |
| Voltage Range [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 50 | $ 1.12 | |
| 100 | $ 1.09 | |||
| 500 | $ 1.06 | |||
| 1000 | $ 0.94 | |||
Description
General part information
BRT1615P-06
Buzzers Transducer, Externally Driven Magnetic 6 V 40mA 2.048kHz 90dB @ 6V, 10cm Through Hole PC Pins
