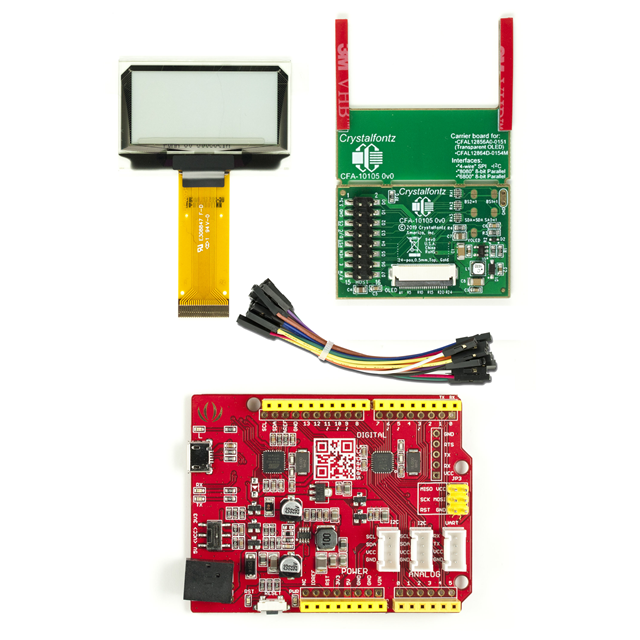

CFAL12856A0-0151-B-E1-2
ActiveCrystalfontz
GRAPHIC DISPLAY OLED BLUE 1.54"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CFAL12856A0-0151-B-E1-2
ActiveCrystalfontz
GRAPHIC DISPLAY OLED BLUE 1.54"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CFAL12856A0-0151-B-E1-2 |
|---|---|
| Controller Type | SSD1309 |
| Diagonal Screen Size [x] | 1.54 in |
| Diagonal Screen Size [x] | 39.12 mm |
| Display Mode | Transmissive |
| Display Type | OLED |
| Dot Pixels [x] | 128 |
| Dot Pixels [y] | 56 |
| Graphics Color | Blue |
| Interface | I2C, SPI, Parallel 8-Bit |
| Touchscreen | Non-Touch |
| Viewing Area [x] | 35.05 mm |
| Viewing Area [y] | 15.32 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 87.22 | |
Description
General part information
CFAL12856A0-0151-B-E1-2
Non-Touch Graphic LCD Display Module Transmissive Blue OLED I2C, Parallel 8-Bit, SPI 1.54" (39.12mm) 128 x 56
