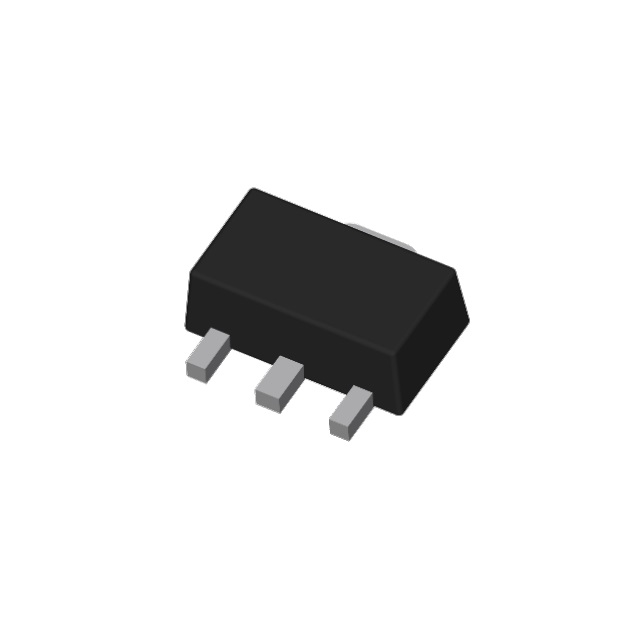

LM78L24F
ActiveTAEJIN
IC REG LINEAR 24V 100MA SOT89-3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LM78L24F
ActiveTAEJIN
IC REG LINEAR 24V 100MA SOT89-3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LM78L24F |
|---|---|
| Current - Output | 100 mA |
| Current - Quiescent (Iq) | 6 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | TO-243AA |
| Protection Features | Over Temperature, Over Current, Short Circuit |
| PSRR | 33 dB |
| Voltage - Input (Max) [Max] | 39 V |
| Voltage - Output (Min/Fixed) | 24 V |
| Voltage Dropout (Max) [Max] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.09 | |
Description
General part information
LM78L24F
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89
