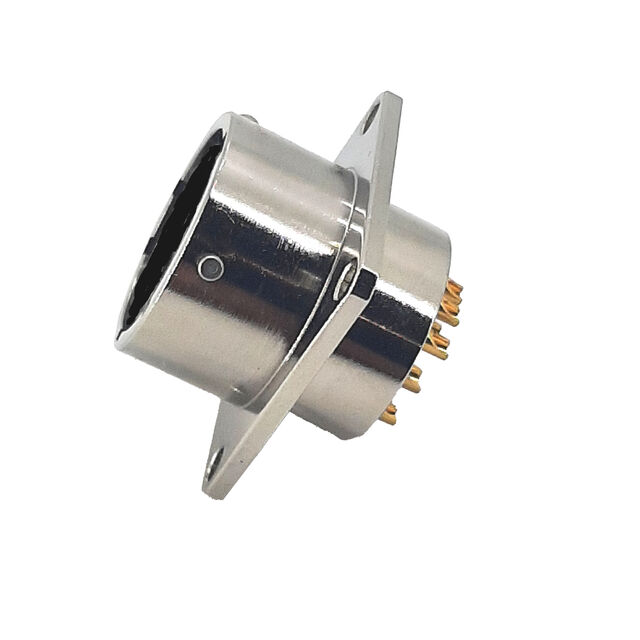

MSW02E18-11P-44
ActiveMilspecwest, LLC
PLUG, ENVIRONMENTAL, ELEC NICK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSW02E18-11P-44
ActiveMilspecwest, LLC
PLUG, ENVIRONMENTAL, ELEC NICK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSW02E18-11P-44 |
|---|---|
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Current Rating (Amps) | 13 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | Environment Resistant |
| Mounting Feature | Flange |
| Number of Positions | 11 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Finish | Electroless Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert | 18-11 |
| Voltage Rating | 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.06 | |
| 10 | $ 18.85 | |||
| 25 | $ 17.65 | |||
| 100 | $ 16.45 | |||
Description
General part information
MSW02E18-11P-44
11 Position Circular Connector Receptacle, Male Pins Solder Cup
