114121-750SS-12
ActiveAccurate Screw Machine

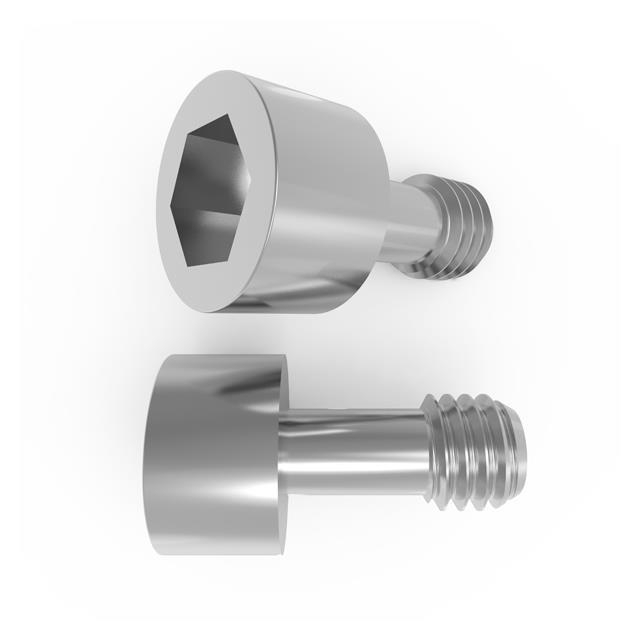

SCREW, CAPTIVE SOCKET HEAD, 1/4-
Deep-Dive with AI
Search across all available documentation for this part.
Documents1960 Series
114121-750SS-12
ActiveAccurate Screw Machine
SCREW, CAPTIVE SOCKET HEAD, 1/4-
Deep-Dive with AI
Documents1960 Series
Technical Specifications
Parameters and characteristics for this part
| Specification | 114121-750SS-12 |
|---|---|
| Drive Type | Hex Socket |
| Head Diameter [diameter] | 9.27 mm |
| Head Diameter [diameter] | 0.365 in |
| Head Height | 6.2 mm |
| Head Height | 0.244 in |
| Length - Below Head [x] | 7.37 mm |
| Length - Below Head [x] | 0.29 in |
| Length - Overall [x] | 13.56 mm |
| Length - Overall [x] | 0.534 in |
| Screw Head Type | Hex Head |
| Thread Size | 1/4"-20 |
| Type | Machine Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.60 | |
Description
General part information
114121-750SS-12
1/4"-20 Hex Head Machine Screw Hex Socket Drive Steel
