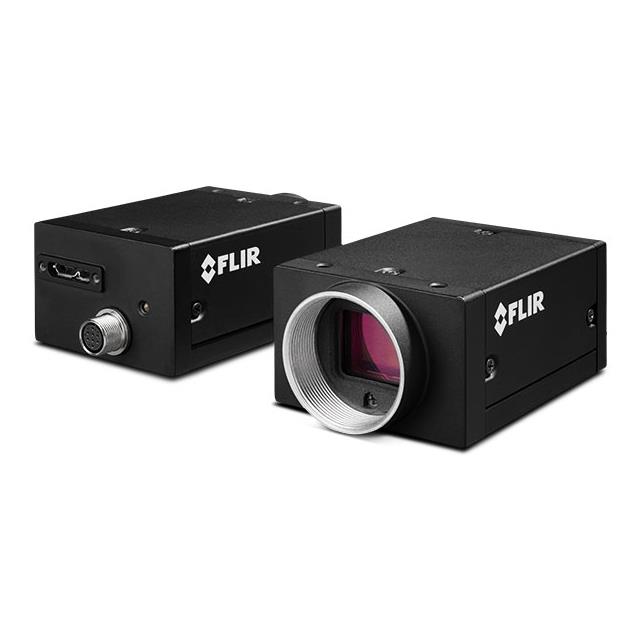

GS3-U3-32S4M-C
ActiveFLIR Integrated Imaging Solutions, Inc.
3.2MP B&W U3 1/1.8" C-MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
GS3-U3-32S4M-C
ActiveFLIR Integrated Imaging Solutions, Inc.
3.2MP B&W U3 1/1.8" C-MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GS3-U3-32S4M-C |
|---|---|
| Color | Monochrome |
| Frames per Second | 121 per Second |
| Height (Max) [Max] [z] | 29 mm |
| Height (Max) [Max] [z] | 1.142 in |
| Interface | USB 3.0 |
| Lens Mount | C |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Pixel Size [x] | 3.45 µm |
| Pixel Size [y] | 3.45 µm |
| Resolution [x] | 2048 |
| Resolution [y] | 1536 |
| Sensor | IMX252 |
| Shutter | Global |
| Size / Dimension [x] | 44 mm |
| Size / Dimension [x] | 1.732 " |
| Size / Dimension [y] | 2.264 in |
| Size / Dimension [y] | 57.5 mm |
| Supplier Device Package | Module |
| Type | CMOS |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1157.00 | |
Description
General part information
GS3-U3-32S4M-C
3.2MP B&W U3 1/1.8" C-MOUNT
Documents
Technical documentation and resources
No documents available
