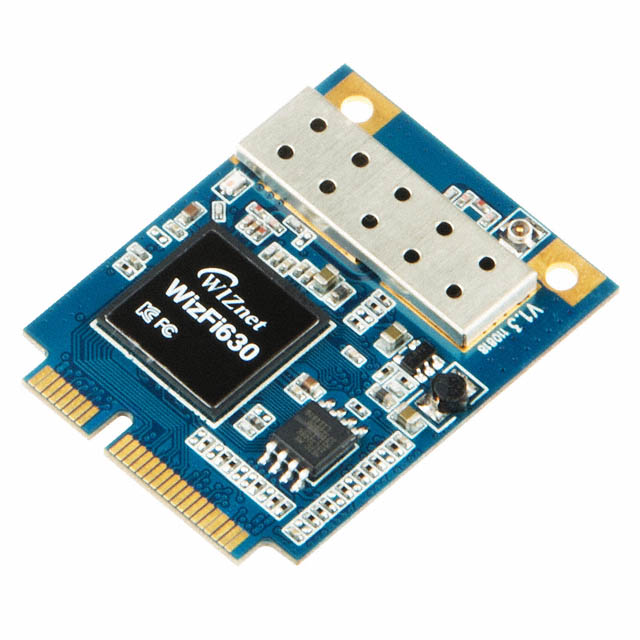

WIZFI630
ObsoleteWIZnet
RF TXRX MOD WIFIU.FL CARD EDGE
Deep-Dive with AI
Search across all available documentation for this part.
WIZFI630
ObsoleteWIZnet
RF TXRX MOD WIFIU.FL CARD EDGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WIZFI630 |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Data Rate | 150 Mbps |
| Frequency | 2.4 GHz |
| Memory Size | 32 MB, 4 MB |
| Modulation | OFDM, DQPSK, BPSK, DSSS, DBPSK, QPSK, 16QAM, 64QAM, CCK |
| Mounting Type | Card Edge |
| Operating Temperature [Max] [custom] | 158 °F |
| Operating Temperature [Min] [custom] | -10 °C |
| Package / Case | Module |
| Power - Output | 17 dBm |
| Protocol | 802.11b/g/n |
| RF Family/Standard | WiFi |
| Sensitivity | -89 dBm |
| Serial Interfaces | UART, USB |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
WIZFI630
WiFi 802.11b/g/n Transceiver Module 2.4GHz Antenna Not Included, U.FL Card Edge
Documents
Technical documentation and resources
