MSTC1001
ActiveAmphenol Fiber Systems International
ST CONNECTOR, MM, 128UM, COTS VE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSTC1001
ActiveAmphenol Fiber Systems International
ST CONNECTOR, MM, 128UM, COTS VE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSTC1001 |
|---|---|
| Attenuation - Typ | -1.3 dB |
| Body Material | Stainless Steel |
| Boot Color | Black |
| Connector Style | ST |
| Connector Type | Plug |
| Fastening Type | Bayonet Lock |
| Features | Strain Relief |
| Ferrule Material | Zirconia |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mode | Multimode |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Reflection | -30 dB |
| Simplex/Duplex | Simplex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 32.81 | |
| 10 | $ 28.73 | |||
| 25 | $ 27.49 | |||
| 50 | $ 26.60 | |||
| 100 | $ 25.72 | |||
| 250 | $ 24.30 | |||
Description
General part information
MSTC1001

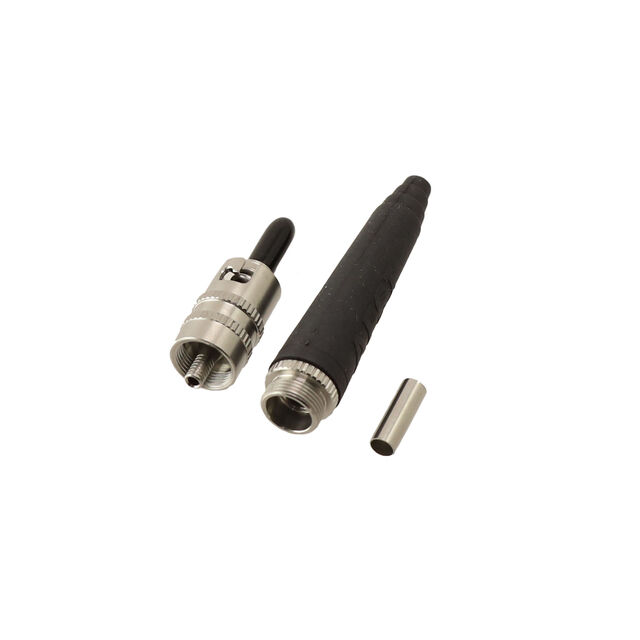

Fiber Optic Plug Connector ST Simplex Silver
Documents
Technical documentation and resources
