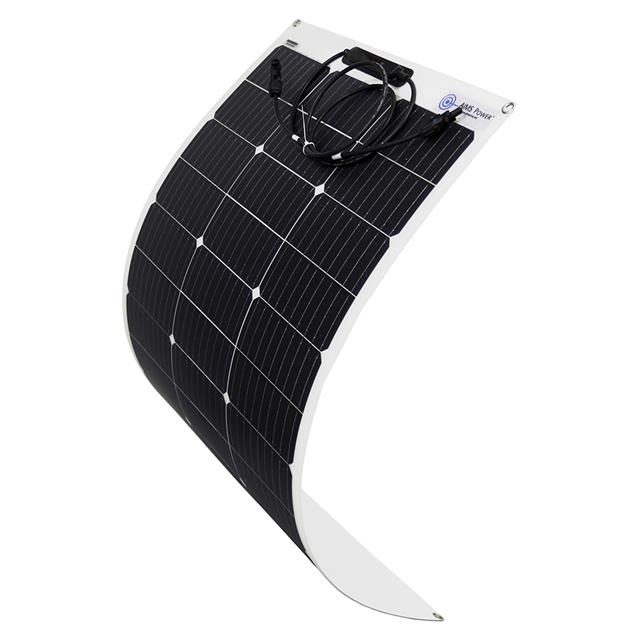

PV100SLIM
ActiveAIMS Power
100 WATT FLEXIBLE BENDABLE SLIM
Deep-Dive with AI
Search across all available documentation for this part.
PV100SLIM
ActiveAIMS Power
100 WATT FLEXIBLE BENDABLE SLIM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PV100SLIM |
|---|---|
| Current - Short Circuit (Isc) | 5.83 A |
| Current @ Pmpp | 5.56 A |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Cells |
| Power (Watts) - Max [Max] | 100 W |
| Size / Dimension [x] | 33 " |
| Size / Dimension [x] | 838.2 mm |
| Size / Dimension [y] | 690.37 mm |
| Size / Dimension [y] | 27.18 in |
| Size / Dimension [z] | 0.15 " |
| Size / Dimension [z] | 3.81 mm |
| Voltage - Open Circuit | 22 V |
| Voltage @ Pmpp | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PV100SLIM
Solar Cell 100 W 22 V
Documents
Technical documentation and resources
No documents available
