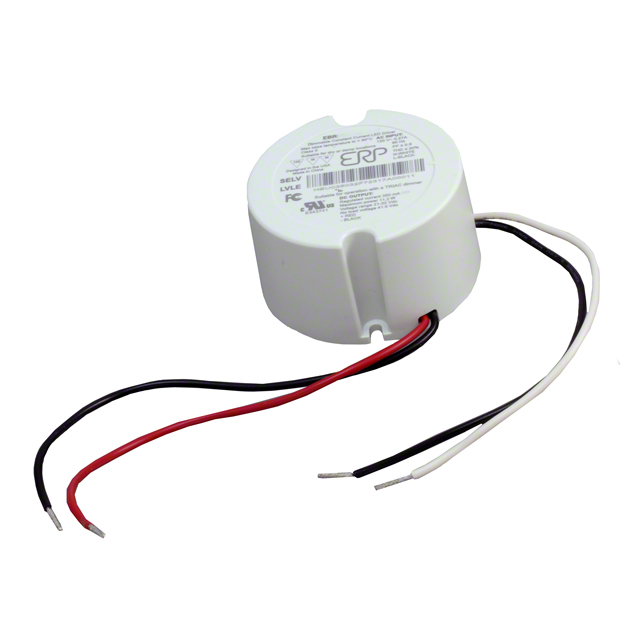

EBR015U-0350-32
ObsoleteERP Power, LLC
LED DRIVER CC AC/DC 21-32V 350MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EBR015U-0350-32
ObsoleteERP Power, LLC
LED DRIVER CC AC/DC 21-32V 350MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EBR015U-0350-32 |
|---|---|
| Approval Agency | CE, cURus |
| Current - Output (Max) [Max] | 350 mA |
| Dimming | ELV, TRIAC |
| Efficiency | 87 % |
| Features | OTP, SCP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 11 W |
| Ratings | IP20 |
| Size / Dimension | 57.9 mm, 31.8 mm |
| Size / Dimension [diameter] | 2.28 in |
| Size / Dimension [z] | 1.25 " |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] [custom] | 132 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Output [Max] | 32 VDC |
| Voltage - Output [Min] | 21 V |
| Weight | 170.5 g |
| Weight | 0.376 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EBR015U-0350-32
350mA 21 ~ 32V Constant Current LED Driver AC DC Converter Topology 1 Output
