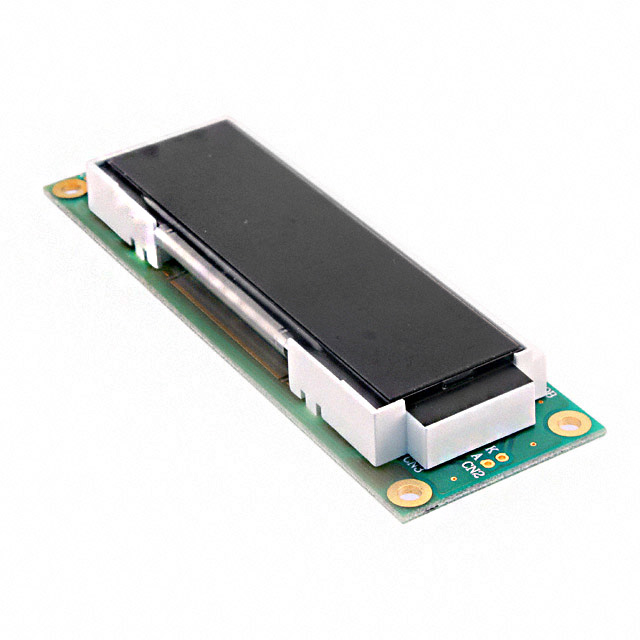

C-51505NFQJ-LG-AKN
ObsoleteKyocera International, Inc.
LCD MOD 40DIG 20X2 TRANSMISV GRN
Deep-Dive with AI
Search across all available documentation for this part.
C-51505NFQJ-LG-AKN
ObsoleteKyocera International, Inc.
LCD MOD 40DIG 20X2 TRANSMISV GRN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C-51505NFQJ-LG-AKN |
|---|---|
| Background Color | Black |
| Backlight | LED - Green |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [y] | 3.2 mm |
| Character Size [z] | 5.55 mm |
| Display Format [x] | 20 |
| Display Format [y] | 2 |
| Display Mode | Transmissive |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [custom] | 0.65 mm |
| Dot Size [custom] | 0.6 mm |
| Interface | Parallel |
| Number of Characters | 40 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 116 mm |
| Outline L x W x H [y] | 37 mm |
| Outline L x W x H [z] | 15.6 mm |
| Text Color | Green |
| Viewing Area [x] | 83 mm |
| Viewing Area [y] | 18.6 mm |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
C-51505NFQJ-LG-AKN
Character Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - Green Parallel 116.00mm x 37.00mm x 15.60mm
Documents
Technical documentation and resources
No documents available
