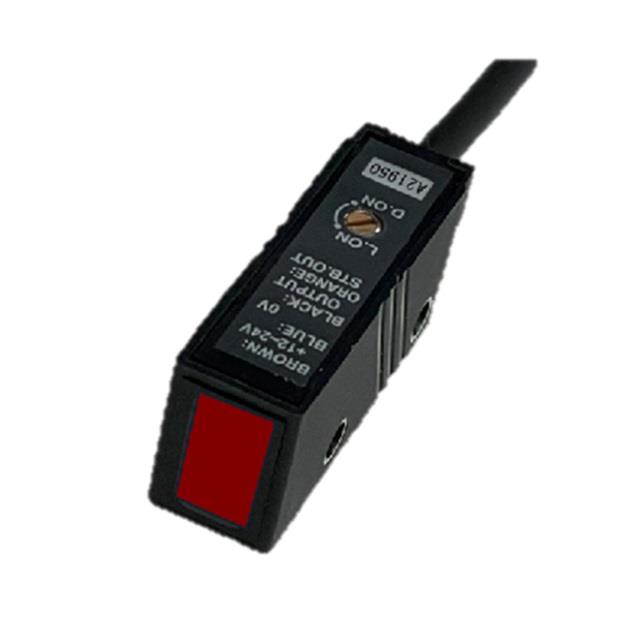

GS20N
ActiveTakex America Inc.
ULTRACOMPACT PHOTOELECTRIC SENSO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GS20N
ActiveTakex America Inc.
ULTRACOMPACT PHOTOELECTRIC SENSO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GS20N |
|---|---|
| Adjustment Type | Adjustable |
| Cable Length | 78.74 in |
| Cable Length | 2 m |
| Connection Method | Cable |
| Ingress Protection | IP67 |
| Light Source | Infrared (900nm) |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Response Time | 350 µs |
| Sensing Distance [Max] | 200 mm |
| Sensing Distance [Max] | 7.874 in |
| Sensing Distance [Min] | 0 mm |
| Sensing Distance [Min] | 0 " |
| Sensing Method | Diffuse |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 114.89 | |
| 10 | $ 109.15 | |||
Description
General part information
GS20N
Diffuse Optical Sensor 0" ~ 7.874" (0mm ~ 200mm) NPN - Dark-ON/Light-ON - Selectable
