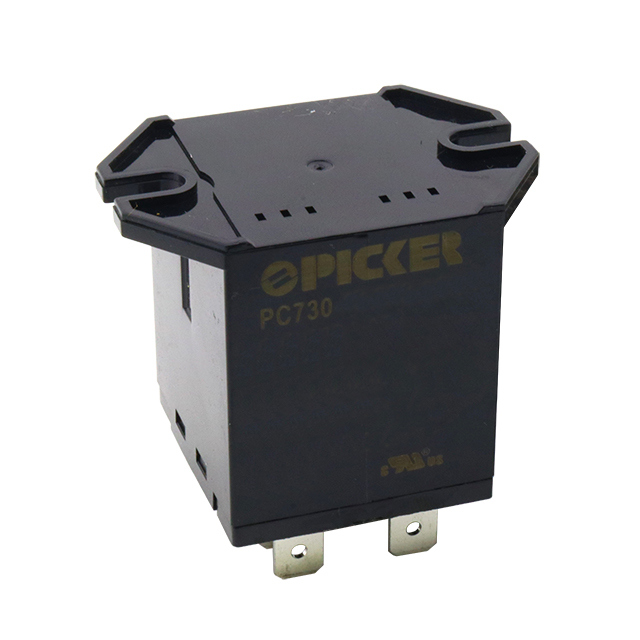

PC730-2C-C3-24D
ActivePicker Components
RELAY GEN PURPOSE DPDT 30A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PC730-2C-C3-24D
ActivePicker Components
RELAY GEN PURPOSE DPDT 30A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PC730-2C-C3-24D |
|---|---|
| Approval Agency | cUL, cURus, UL |
| Coil Current | 83.3 mA |
| Coil Insulation | Class B |
| Coil Resistance | 288 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 30 A |
| Load - Max Switching | 9900 VA, 1080 W |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2 VDC |
| Operate Time | 25 ms |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Relay Type | General Purpose |
| Release Time | 15 ms |
| Switching Voltage | 36 VDC, 330 VAC |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 320 | $ 9.08 | |
Description
General part information
PC730-2C-C3-24D
General Purpose Relay DPDT (2 Form C) 24VDC Coil Chassis Mount
