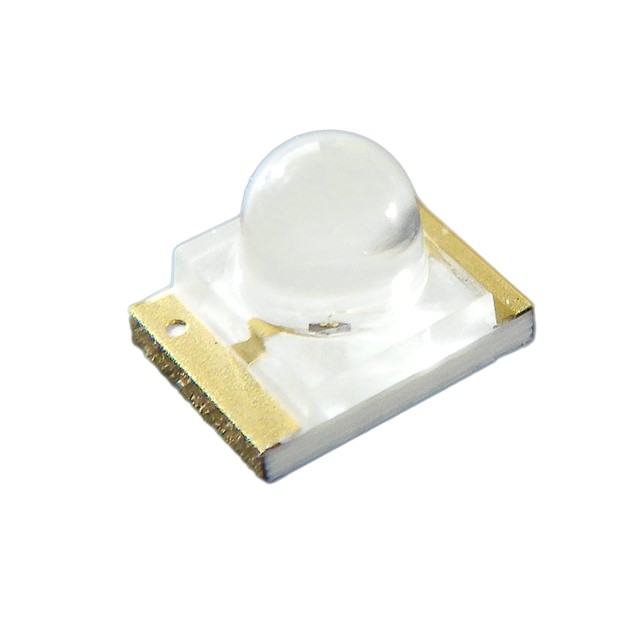

QBLP653-S3
ActiveQT Brightek (QTB)
1208D LED RED 640NM DOMINANT, 66
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBLP653-S3
ActiveQT Brightek (QTB)
1208D LED RED 640NM DOMINANT, 66
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBLP653-S3 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 2.65 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 1.8 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 625 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1209, 3224 Metric |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.4 mm |
| Supplier Device Package | 1208 |
| Viewing Angle | 15 ° |
| Voltage - Forward (Vf) (Typ) | 1.9 V |
| Wavelength - Dominant | 642 nm |
| Wavelength - Peak | 660 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.64 | |
| 10 | $ 0.42 | |||
| 100 | $ 0.28 | |||
| Digi-Reel® | 1 | $ 0.64 | ||
| 10 | $ 0.42 | |||
| 100 | $ 0.28 | |||
| Tape & Reel (TR) | 1500 | $ 0.22 | ||
| 3000 | $ 0.19 | |||
| 7500 | $ 0.18 | |||
| 10500 | $ 0.18 | |||
| 37500 | $ 0.17 | |||
Description
General part information
QBLP653-S3
Red 642nm LED Indication - Discrete 1.9V 1209 (3224 Metric)
