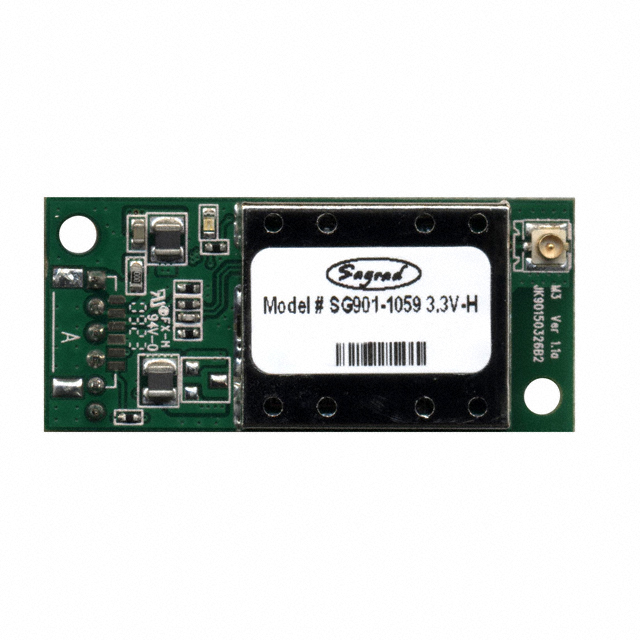

SG901-1059B-5.0-H
ObsoleteSagrad Inc.
RF TXRX MODULE WIFIIPEX SMD
Deep-Dive with AI
Search across all available documentation for this part.
SG901-1059B-5.0-H
ObsoleteSagrad Inc.
RF TXRX MODULE WIFIIPEX SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SG901-1059B-5.0-H |
|---|---|
| Antenna Type | Antenna Not Included, I-PEX |
| Current - Transmitting [Max] | 110 mA |
| Data Rate | 150 Mbps |
| Frequency | 2.4 GHz |
| Modulation | CCK, QPSK, OFDM, BPSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -15 °C |
| Package / Case | Module |
| Power - Output | 20 dBm |
| Protocol | 802.11b/g/n |
| RF Family/Standard | WiFi |
| Sensitivity | -85 dBm |
| Serial Interfaces | USB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SG901-1059B-5.0-H
WiFi 802.11b/g/n Transceiver Module 2.4GHz Antenna Not Included, I-PEX Surface Mount
Documents
Technical documentation and resources
No documents available
