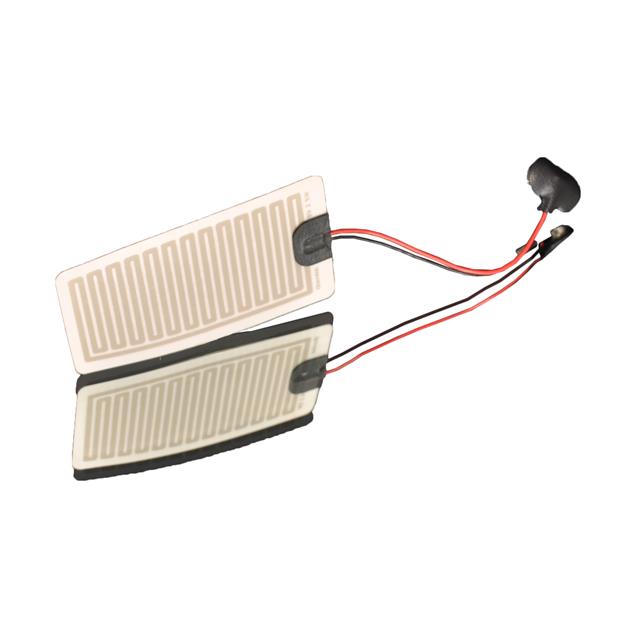

DK0406PB
ActiveThermo Heating Elements
4.0 X 6.0 IN. POLYMER THICK FILM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DK0406PB |
|---|---|
| Attachment Method | Pressure Sensitive Adhesive (PSA) |
| Color | Black |
| Length | 152.4 mm |
| Length | 6 in |
| Length - Lead Wire [x] | 12 in |
| Length - Lead Wire [x] | 304.8 mm |
| Material | Polyester |
| Material - Insulation | Polyvinyl Chloride (PVC) |
| Power (Watts) | 16.8 W |
| Resistance | 8.6 Ohms |
| Shape | Rectangular |
| Temperature Rating | 239 °F |
| Temperature Rating | 115 °C |
| Termination | Wire Leads |
| Type | Printed |
| Voltage | 12 V |
| Watt Density @ 12V | 700 mW/in² |
| Width [x] | 4 " |
| Width [x] | 101.6 mm |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 4 | $ 63.95 | |
Description
General part information
DK0406PB
4.0 X 6.0 IN. POLYMER THICK FILM
Documents
Technical documentation and resources
No documents available
