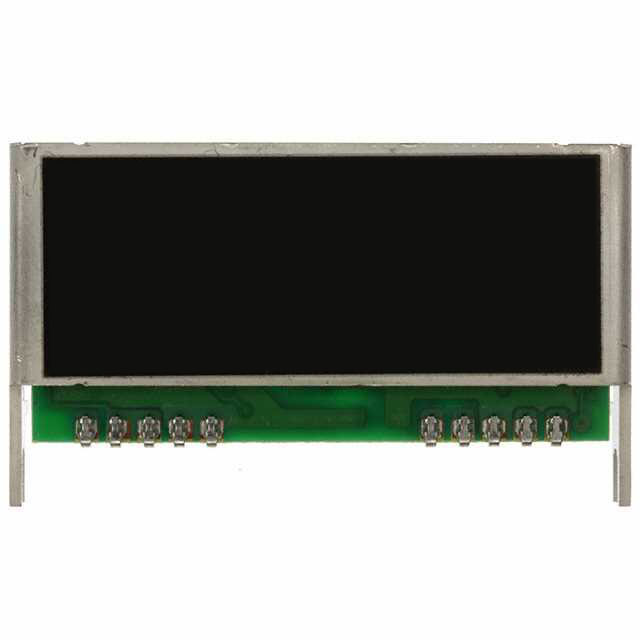

PT4223C
ObsoletePower Trends
DC DC CONVERTER 5V 10W
Deep-Dive with AI
Search across all available documentation for this part.
PT4223C
ObsoletePower Trends
DC DC CONVERTER 5V 10W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PT4223C |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | 85 % |
| Features | UVLO, Remote On/Off, SCP, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-SMD Module |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 30.2 mm |
| Size / Dimension [y] | 1.19 " |
| Size / Dimension [z] | 7.9 mm |
| Size / Dimension [z] | 0.31 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 9 | $ 37.42 | |
Description
General part information
PT4223C
Isolated Module DC DC Converter 1 Output 5V 2A 36V - 75V Input
