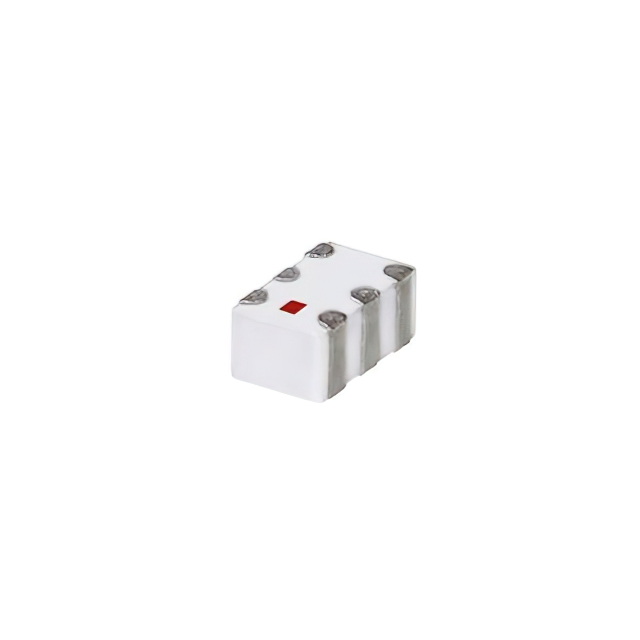

HFCW-7500+
ActiveMINI-CIRCUITS
LTCC HPF, 8200 - 21000 MHZ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HFCW-7500+
ActiveMINI-CIRCUITS
LTCC HPF, 8200 - 21000 MHZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HFCW-7500+ |
|---|---|
| Bandwidth | 12.8 GHz |
| Filter Type | High Pass |
| Frequency | 7.6 GHz |
| Height (Max) | 0.61 mm |
| Height (Max) [Max] | 0.024 in |
| Impedance | 50 Ohms |
| Insertion Loss | 1.5 dB |
| Mounting Type | Surface Mount |
| Package / Case | 0603 |
| Package / Case | 1608 |
| Package / Case | 6 Leads |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Size / Dimension [y] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.53 | |
| 10 | $ 7.17 | |||
| 20 | $ 6.83 | |||
| 50 | $ 6.42 | |||
| 100 | $ 6.00 | |||
| 200 | $ 5.45 | |||
| 500 | $ 4.90 | |||
| 1000 | $ 4.09 | |||
| 2000 | $ 3.64 | |||
| Digi-Reel® | 1 | $ 7.53 | ||
| 10 | $ 7.17 | |||
| 20 | $ 6.83 | |||
| 50 | $ 6.42 | |||
| 100 | $ 6.00 | |||
| 200 | $ 5.45 | |||
| 500 | $ 4.90 | |||
| 1000 | $ 4.09 | |||
| 2000 | $ 3.64 | |||
| Tape & Reel (TR) | 4000 | $ 3.29 | ||
Description
General part information
HFCW-7500+
7.6GHz (Cutoff) High Pass Ceramic Filter 12.8 GHz 50Ohm 0603 (1608 Metric), 6 PC Pad
Documents
Technical documentation and resources
