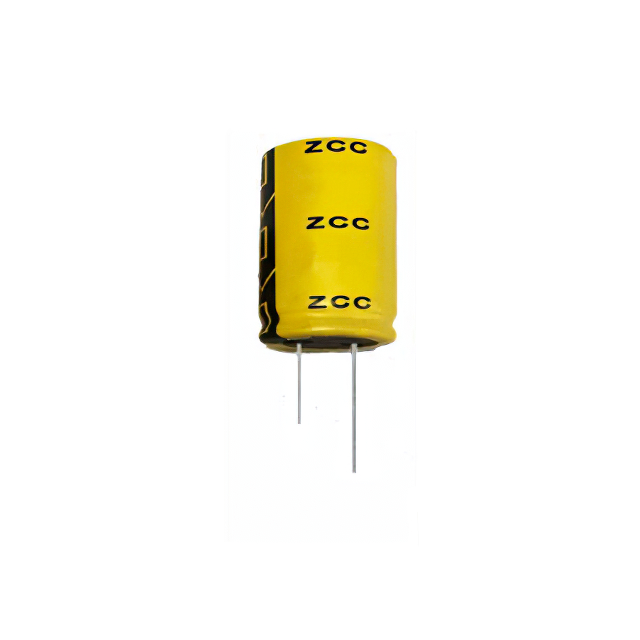

ZCC127S0YI25RR
ActiveANGA POW
MINIMUM DISCHARGE VOLTAGE 2.5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZCC127S0YI25RR
ActiveANGA POW
MINIMUM DISCHARGE VOLTAGE 2.5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZCC127S0YI25RR |
|---|---|
| Capacitance | 120 F |
| ESR (Equivalent Series Resistance) | 80 mOhm |
| Height - Seated (Max) [Max] [z] | 0.984 " |
| Height - Seated (Max) [Max] [z] | 25 mm |
| Lead Spacing | 5 mm |
| Lead Spacing | 0.197 in |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | Radial, Can |
| Size / Dimension [diameter] | 0.492 in |
| Size / Dimension [diameter] | 12.5 mm |
| Tolerance [Max] | 50 % |
| Tolerance [Min] | -20 % |
| Voltage - Rated | 3.8 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.10 | |
Description
General part information
ZCC127S0YI25RR
120 F (EDLC) Supercapacitor 3.8 V Radial, Can 80mOhm 1000 Hrs @ 65°C
