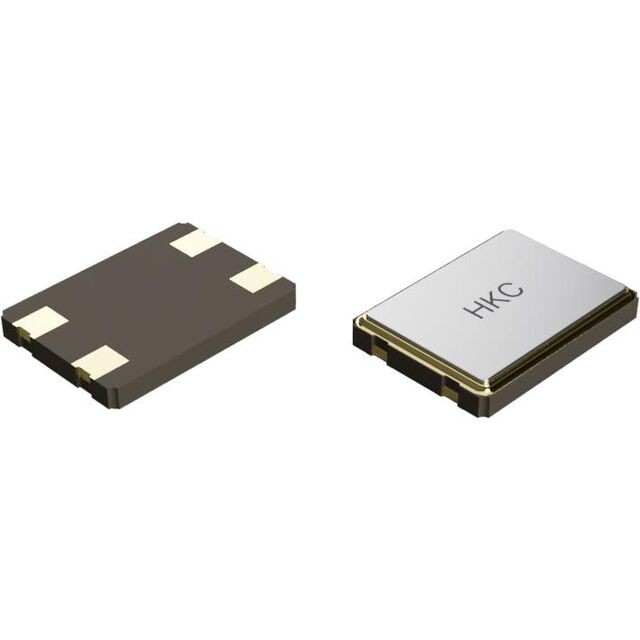

7050S42500BMDAJEDCA-CT
ActiveHKC
CRYSTAL: 25.000MHZ, 25PPM, 20P
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7050S42500BMDAJEDCA-CT
ActiveHKC
CRYSTAL: 25.000MHZ, 25PPM, 20P
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7050S42500BMDAJEDCA-CT |
|---|---|
| ESR (Equivalent Series Resistance) | 30 Ohm |
| Frequency | 25 MHz |
| Frequency Stability | 20 ppm |
| Frequency Tolerance | 25 ppm |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Load Capacitance | 18 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
7050S42500BMDAJEDCA-CT
25 MHz ±25ppm Crystal 18pF 30 Ohms 4-SMD, No Lead
