561161
ActivenVent

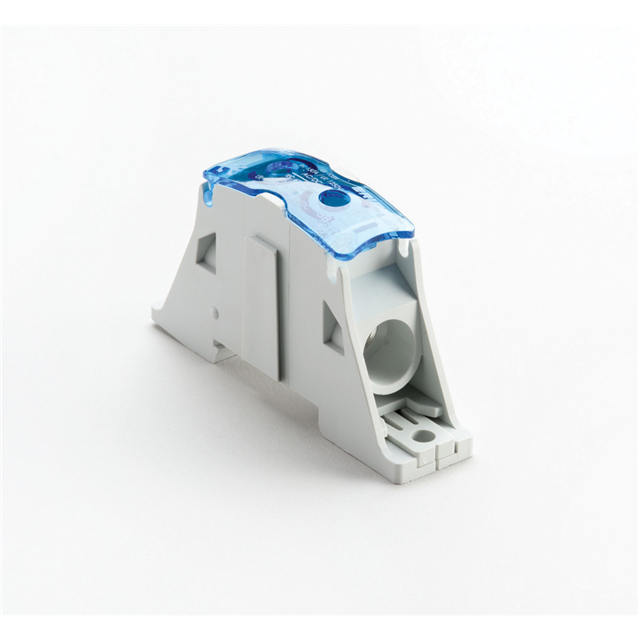

SPLICE BLOCK 150A UL ALUMINUM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
561161
ActivenVent
SPLICE BLOCK 150A UL ALUMINUM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 561161 |
|---|---|
| Current Rating (Amps) | 150 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 1 |
| Line Side Wire/Stud Size | 1 aught AWG, 8 AWG |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 2 |
| Load Side Wire/Stud Size [Max] | 8 AWG |
| Load Side Wire/Stud Size [Min] | 1 aught AWG |
| Number of Poles | 1 |
| Type | Power Distribution Block |
| Voltage - Rated | 1250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 100 | $ 10.77 | |
Description
General part information
561161
1 Pole Power Distribution Block 150 A 1250 V
Documents
Technical documentation and resources
