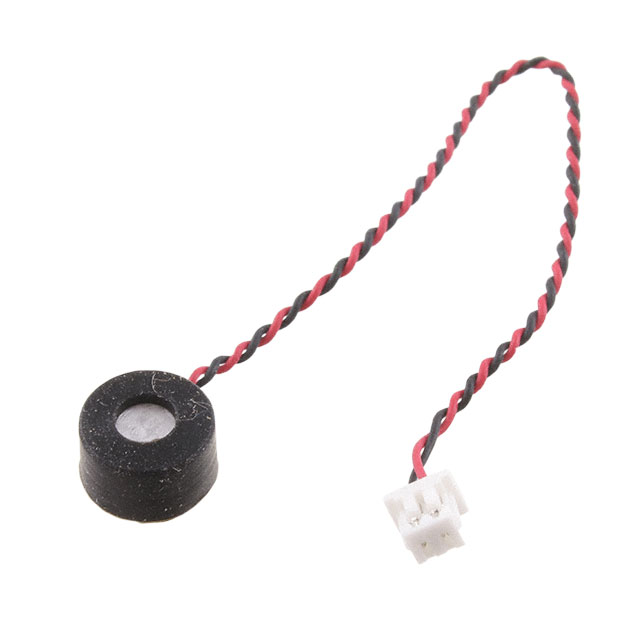

EM-6027LRNW
ActiveSoberton Inc.
MIC COND ANLG OMNI -42DB 0.236"D
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EM-6027LRNW
ActiveSoberton Inc.
MIC COND ANLG OMNI -42DB 0.236"D
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EM-6027LRNW |
|---|---|
| Current - Supply | 500 µA |
| Direction | Omnidirectional |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 50 Hz |
| Impedance | 2.2 kOhms |
| Output Type | Analog |
| Port Location | Top |
| Ratings | IP65 |
| S/N Ratio | 58 dB |
| Shape | Circular |
| Size / Dimension [diameter] | 6 mm |
| Size / Dimension [diameter] | 0.236 in |
| Termination | Wire Leads |
| Type | Electret Condenser |
| Voltage - Rated | 2 VDC |
| Voltage Range [Max] | 10 V |
| Voltage Range [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.79 | |
| 10 | $ 1.46 | |||
| 25 | $ 1.35 | |||
| 40 | $ 1.29 | |||
| 80 | $ 1.21 | |||
| 230 | $ 1.11 | |||
| 440 | $ 1.10 | |||
Description
General part information
EM-6027LRNW
50 Hz ~ 10 kHz Analog Microphone Electret Condenser 1 V ~ 10 V Omnidirectional (-42dB ±3dB @ 94dB SPL) Wire Leads
