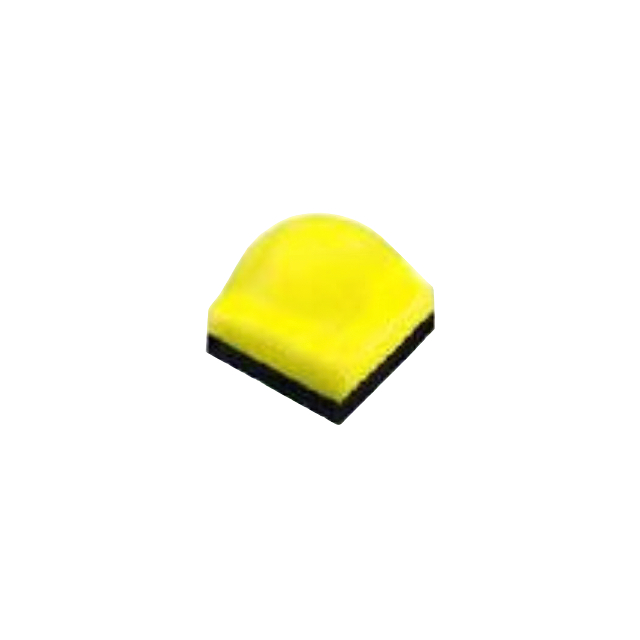

QLSP18PCAAU
ActiveQuelighting Corp
1616 PACKAGE LED, TOP VIEW, PC A
Deep-Dive with AI
Search across all available documentation for this part.
QLSP18PCAAU
ActiveQuelighting Corp
1616 PACKAGE LED, TOP VIEW, PC A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QLSP18PCAAU |
|---|---|
| Color | Amber |
| Current - Max [Max] | 1 A |
| Current - Test | 350 mA |
| Height - Seated (Max) | 1.6 mm |
| Height - Seated (Max) [Max] | 0.063 in |
| Lumens/Watt @ Current - Test | 95 lm/W |
| Luminous Flux @ Current/Temperature | 100 lm |
| Mounting Type | Surface Mount |
| Package / Case | 0606, 1616 Metric |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 1616 |
| Thermal Resistance of Package [custom] | 6 °C/W |
| Voltage - Forward (Vf) (Typ) | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.26 | |
| 10 | $ 1.51 | |||
| 100 | $ 1.16 | |||
| 500 | $ 1.05 | |||
| Digi-Reel® | 1 | $ 2.26 | ||
| 10 | $ 1.51 | |||
| 100 | $ 1.16 | |||
| 500 | $ 1.05 | |||
| Tape & Reel (TR) | 1000 | $ 0.90 | ||
| 2000 | $ 0.85 | |||
| 5000 | $ 0.83 | |||
| 10000 | $ 0.82 | |||
Description
General part information
QLSP18PCAAU
LED Lighting Color - Amber 0606 (1616 Metric)
Documents
Technical documentation and resources
No documents available
