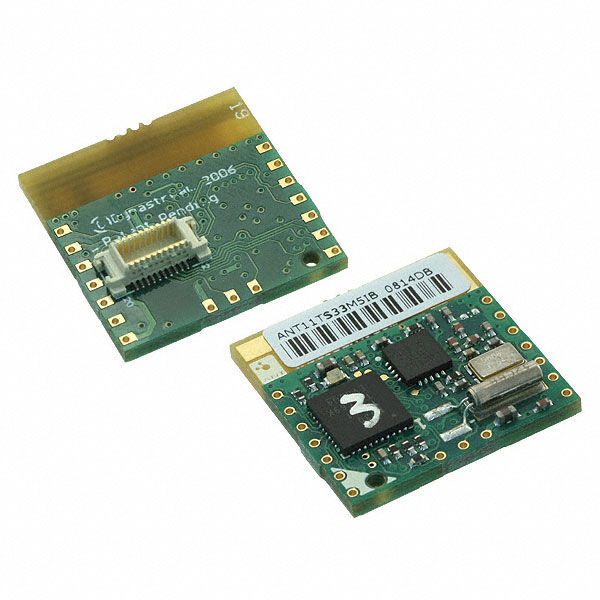

ANT11TS33M5IB
ObsoleteDynastream Innovations
RF TXRX MOD INTEGRATED TRACE SMD
Deep-Dive with AI
Search across all available documentation for this part.
ANT11TS33M5IB
ObsoleteDynastream Innovations
RF TXRX MOD INTEGRATED TRACE SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT11TS33M5IB |
|---|---|
| Antenna Type | Integrated, Trace |
| Current - Receiving | 19 mA |
| Current - Transmitting | 13 mA |
| Data Rate | 1 Mbps |
| Frequency | 2.4 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 20-SMD Module |
| Power - Output | 4 dBm |
| Sensitivity | -85 dBm |
| Utilized IC / Part | nRF24L01 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ANT11TS33M5IB
Transceiver Module 2.4GHz Integrated, Trace Surface Mount
Documents
Technical documentation and resources
No documents available
