Technical Specifications
Parameters and characteristics for this part
| Specification | 33-3990XF-14-01 |
|---|---|
| Antenna Type | Dome |
| Applications | GLONASS, SBAS, IRNSS, NavIC, Galileo, Beidou, GNSS, GPS, LTE, QZSS |
| Features | Filter, LNA |
| Frequency (Center/Band) | 1.232 GHz, 1.582 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.3 GHz, 1.606 GHz |
| Frequency Range [Min] | 1.559 GHz, 1.164 GHz |
| Gain | 37 dB |
| Height (Max) [Max] [z] | 1.878 " |
| Height (Max) [Max] [z] | 47.7 mm |
| Ingress Protection | IP69K |
| Mounting Type | Through Hole |
| Number of Bands | 2 |
| RF Family/Standard | Cellular, Navigation |
| Termination | N Type Female |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 408.57 | |
Description
General part information
33-3990XF-14-01

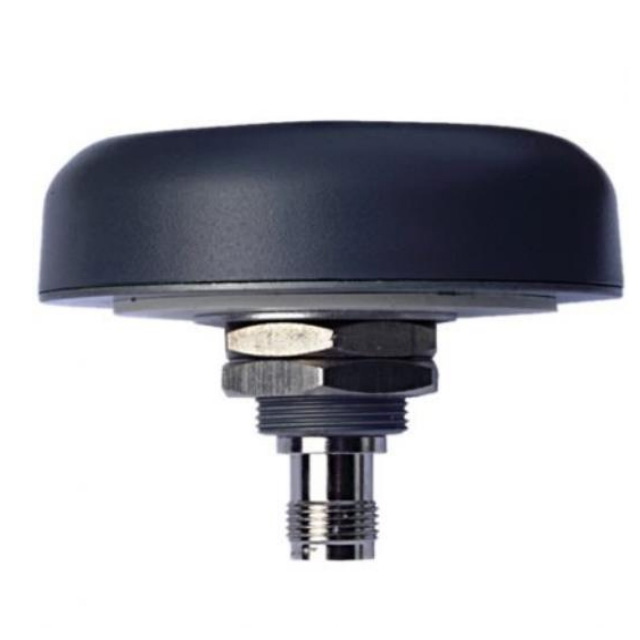

RF ANTENNA Beidou, Galileo, GLONASS, GNSS, GPS, IRNSS, LTE, NavIC, QZSS, SBAS Dome N Type Female Through Hole
