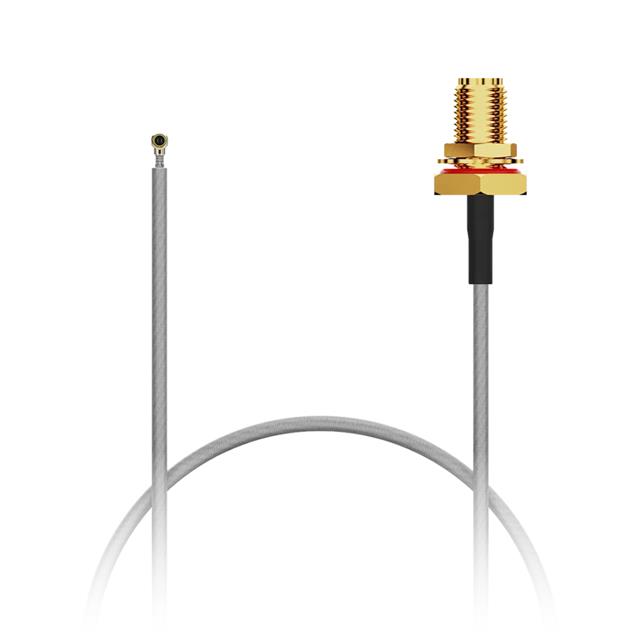

CAB530RF-0150-A-1
ActiveGCT (Gradconn)
COAX CBL MHF4L TO SMA 5.9"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CAB530RF-0150-A-1
ActiveGCT (Gradconn)
COAX CBL MHF4L TO SMA 5.9"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CAB530RF-0150-A-1 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | I-PEX MHF4L Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type [diameter] | 1.37 mm |
| Color | Black |
| Features | IP Rated Unmated |
| Frequency - Max [Max] | 8 GHz |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Length [x] | 150 mm |
| Length [x] | 5.906 " |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | I-PEX MHF4L to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 500 | $ 8.30 | |
Description
General part information
CAB530RF-0150-A-1
Cable Assembly Coaxial I-PEX MHF4L to SMA 1.37mm OD Coaxial Cable 5.906" (150.00mm)
