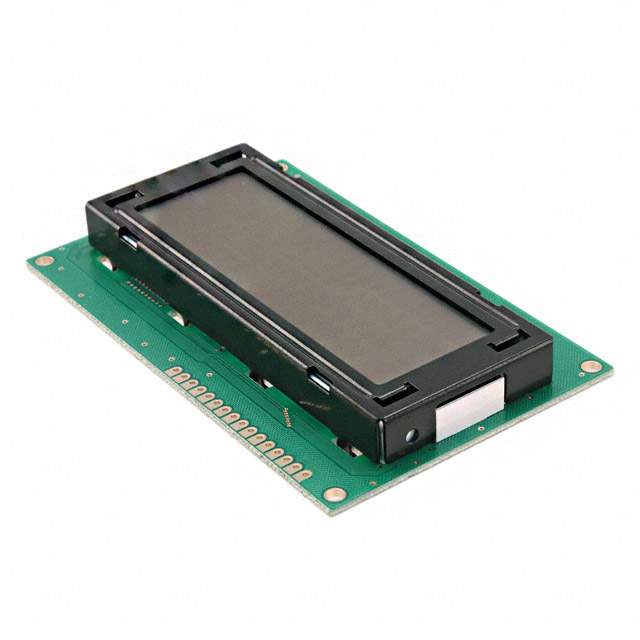

C-51847NFJ-SLW-AFN

Obsolete

Kyocera International, Inc.

LCD MOD 80DIG 20X4 TRANSFLCT WHT

Search across all available documentation for this part.

Obsolete

Kyocera International, Inc.

LCD MOD 80DIG 20X4 TRANSFLCT WHT

Technical Specifications

Parameters and characteristics for this part

Specification	C-51847NFJ-SLW-AFN

Background Color	White
Backlight	LED - White
Character Format [x]	5 Dots
Character Format [y]	8 Dots
Display Format [x]	20
Display Format [y]	4
Display Mode	Transflective
Display Type	FSTN - Film Super-Twisted Nematic
Interface	Parallel, 8-Bit
Number of Characters	80
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline L x W x H [x]	98.5 mm
Outline L x W x H [y]	61 mm
Outline L x W x H [z]	15.6 mm
Text Color	Black
Viewing Area [x]	76 mm
Viewing Area [y]	25.2 mm
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Character Display Module Transflective 5 x 8 Dots FSTN - Film Super-Twisted Nematic LED - White Parallel, 8-Bit 98.50mm x 61.00mm x 15.60mm
