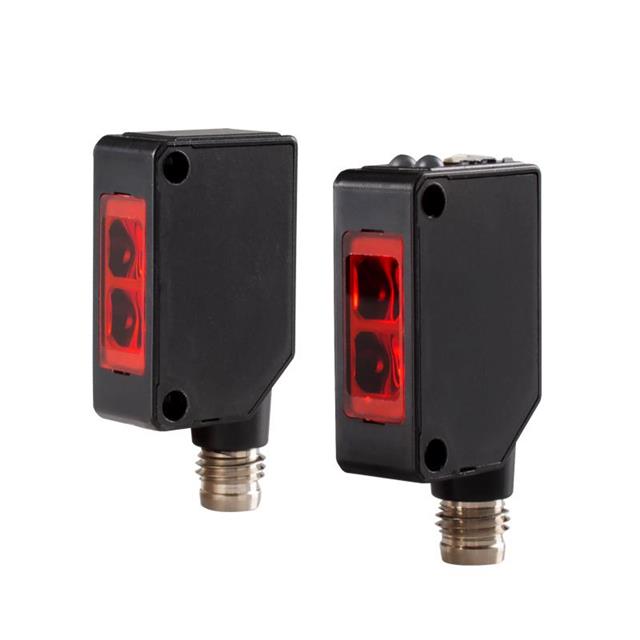

Z3T-2500CN4
ActiveOptex FA
SENSOR THROUGH-BEAM 25M NPN M8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Z3T-2500CN4
ActiveOptex FA
SENSOR THROUGH-BEAM 25M NPN M8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Z3T-2500CN4 |
|---|---|
| Adjustment Type | Adjustable, 1-Turn Potentiometer |
| Connection Method | Connector, M8 |
| Ingress Protection | IP67 |
| Light Source | 632 nm |
| Light Source | Red |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | NPN - Open Collector, Light-ON\Dark-ON |
| Response Time | 500 µs |
| Sensing Distance | 82.02 ft |
| Sensing Distance | 25 m |
| Sensing Method | Through-Beam |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 63.00 | |
Description
General part information
Z3T-2500CN4
Through-Beam Optical Sensor 82.02' (25m) NPN - Open Collector, Light-ON\Dark-ON
