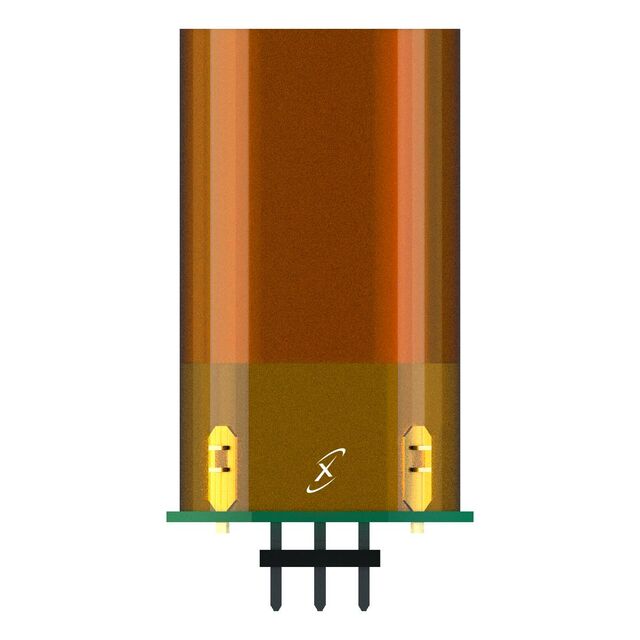

M1575HCT-22-P-E4/108-00033-04
ActiveMaxtena Inc
HELICAL PASSIVE GPS ANTENNA
Deep-Dive with AI
Search across all available documentation for this part.
M1575HCT-22-P-E4/108-00033-04
ActiveMaxtena Inc
HELICAL PASSIVE GPS ANTENNA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M1575HCT-22-P-E4/108-00033-04 |
|---|---|
| Antenna Type | Module |
| Applications | GPS, M2M |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | Wide Band |
| Gain | -1 dBi |
| Height (Max) [Max] | 0.957 in |
| Height (Max) [Max] | 24.3 mm |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination | Pin |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 19.29 | |
| 10 | $ 17.79 | |||
| 25 | $ 16.99 | |||
Description
General part information
M1575HCT-22-P-E4/108-00033-04
RF ANTENNA GPS, M2M Module Pin
Documents
Technical documentation and resources
No documents available
