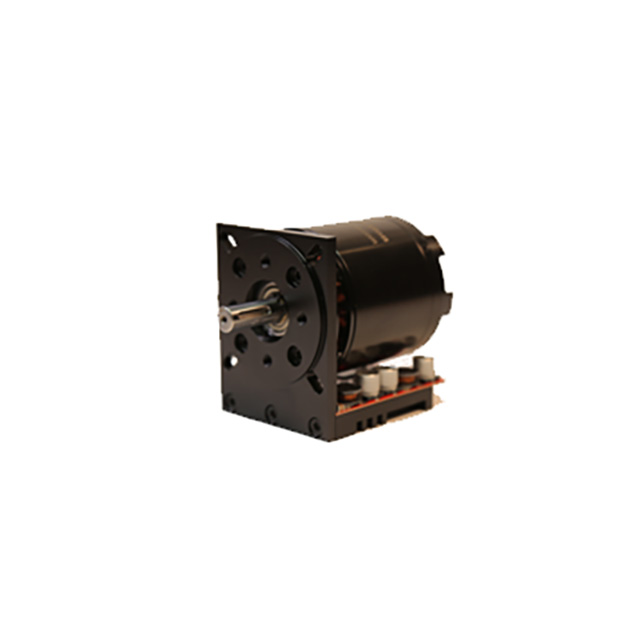

SH200B
ActiveSimplex Motion AB
INTEGRATED SERVOMOTOR 300W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SH200B
ActiveSimplex Motion AB
INTEGRATED SERVOMOTOR 300W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SH200B |
|---|---|
| Encoder Type | Incremental |
| Function | Servomotor |
| Length - Shaft and Bearing | 0.866 in |
| Length - Shaft and Bearing | 22 mm |
| Motor Type | Brushless (BLDC) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Power - Rated | 300 W |
| RPM | 6000 RPM |
| Termination Style | Connector |
| Torque - Max Momentary (oz-in / mNm) | 4000 mNm |
| Torque - Max Momentary (oz-in / mNm) | 565 oz-in |
| Torque - Rated (oz-in / mNm) | 100 oz-in |
| Torque - Rated (oz-in / mNm) | 720 mNm |
| Type | DC Motor |
| Voltage - Rated [Max] | 48 V |
| Voltage - Rated [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 630.00 | |
| 5 | $ 595.00 | |||
| 10 | $ 580.00 | |||
Description
General part information
SH200B
Brushless (BLDC) DC Motor Servomotor 6000 RPM 300W Incremental 12 ~ 48VDC
Documents
Technical documentation and resources
