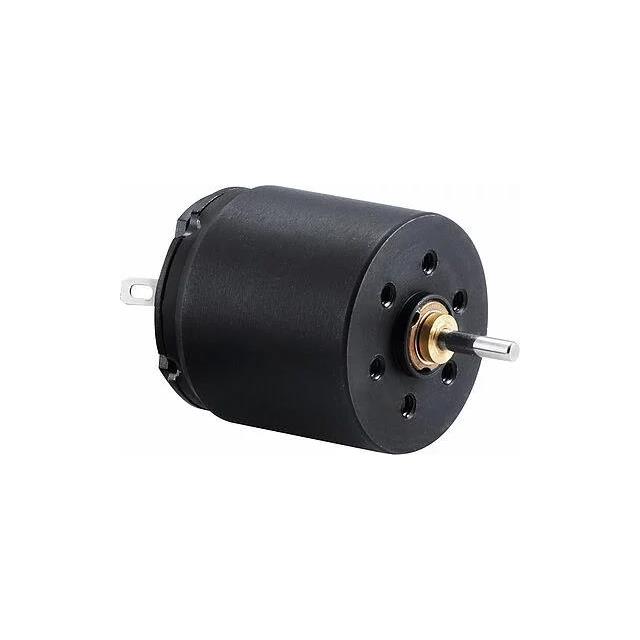

3000002399
ActiveFaulhaber
1717T024SR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3000002399
ActiveFaulhaber
1717T024SR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3000002399 |
|---|---|
| Diameter - Shaft [diameter] | 0.059 in |
| Diameter - Shaft [diameter] | 1.5 mm |
| Function | Standard |
| Length - Shaft and Bearing [x] | 8.1 mm |
| Length - Shaft and Bearing [x] | 0.319 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 10 mm |
| Mounting Hole Spacing | 0.394 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Rated | 5 W |
| RPM | 6540 RPM |
| Size / Dimension [diameter] | 0.669 in |
| Size / Dimension [diameter] | 17 mm |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 2.2 mNm |
| Torque - Rated (oz-in / mNm) | 0.312 oz-in |
| Type | DC Motor |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 101.40 | |
| 5 | $ 82.40 | |||
| 20 | $ 63.40 | |||
| 50 | $ 60.20 | |||
Description
General part information
3000002399
Brushed DC Motor Standard 6540 RPM 5W 24VDC
Documents
Technical documentation and resources
