LPH1-04C24-5780-00
ActiveNew Energy

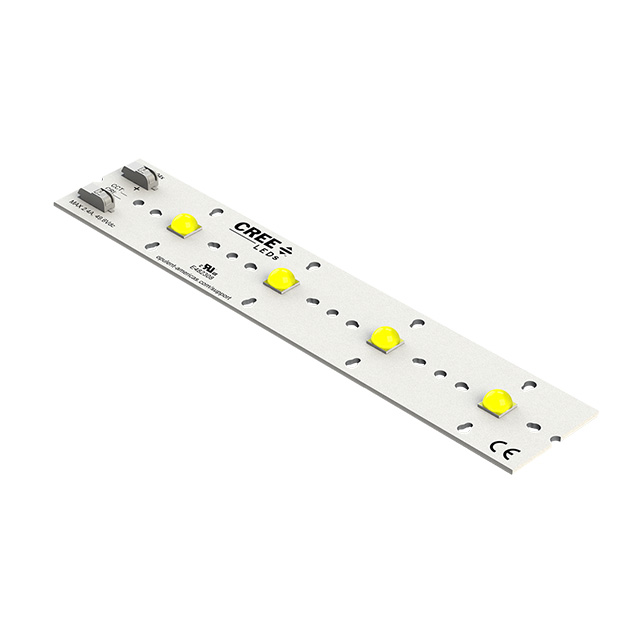

LED MOD XHP70.2 LNR STRP 5700K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LPH1-04C24-5780-00
ActiveNew Energy
LED MOD XHP70.2 LNR STRP 5700K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LPH1-04C24-5780-00 |
|---|---|
| CCT (K) | 5700 K |
| Color | Cool, White |
| Configuration | Linear Light Strip |
| CRI (Color Rendering Index) | 80 |
| Current - Test | 1.05 A |
| Lens Type | Domed |
| Lumens/Watt @ Current - Test | 156 lm/W |
| Luminous Flux @ Current/Temperature | 7320 lm |
| Size / Dimension [x] | 6.7 in |
| Size / Dimension [y] | 32.99 mm |
| Temperature - Test | 85 °C |
| Type | LED Module |
| Voltage - Forward (Vf) (Typ) | 44.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 500 | $ 45.98 | |
Description
General part information
LPH1-04C24-5780-00
LED Lighting COBs Engines Modules LED Module XHP70.2 White, Cool Linear Light Strip
