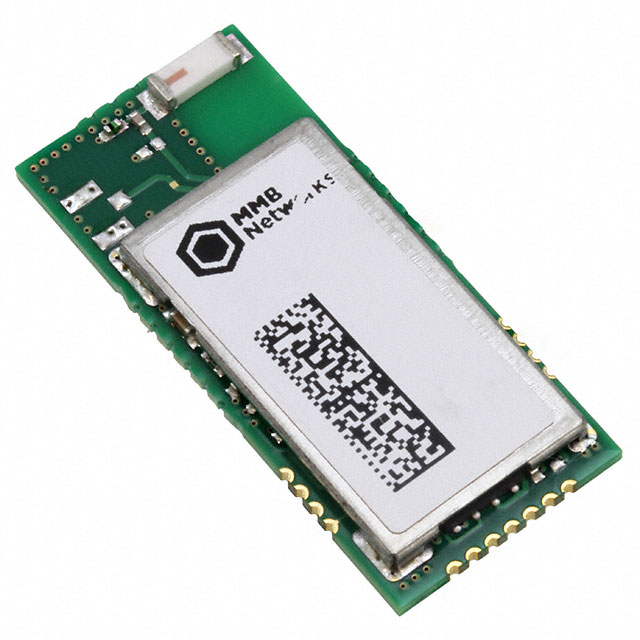

Z357PA40-SMT-P-NC-N
ActiveMMB Networks
RF TXRX MOD 802.15.4 CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
Z357PA40-SMT-P-NC-N
ActiveMMB Networks
RF TXRX MOD 802.15.4 CHIP SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Z357PA40-SMT-P-NC-N |
|---|---|
| Antenna Type | Integrated, Chip |
| Current - Receiving | 32 mA |
| Current - Transmitting | 175 mA |
| Data Rate | 921.6 kbps |
| Frequency | 2.4 GHz |
| Memory Size [custom] | 12 kB |
| Memory Size [custom] | 192 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 20 dBm |
| Protocol | Zigbee® |
| RF Family/Standard | 802.15.4 |
| Sensitivity | -106 dBm |
| Serial Interfaces | UART, SPI |
| Utilized IC / Part | EM357 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 12.91 | |
| 10 | $ 11.68 | |||
| 25 | $ 10.82 | |||
Description
General part information
Z357PA40-SMT-P-NC-N
802.15.4 Zigbee® Transceiver Module 2.4GHz Integrated, Chip Surface Mount
Documents
Technical documentation and resources
No documents available
