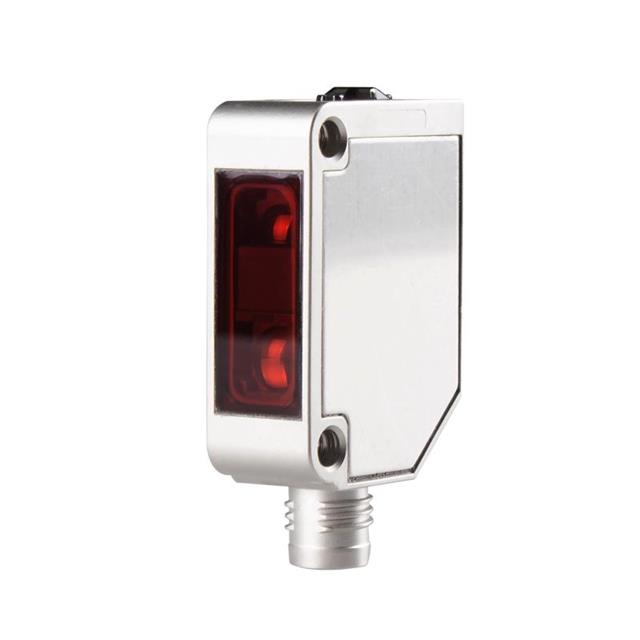

BGS-ZM10CN4
ActiveOptex FA
BGS SENSOR LED 10-100MM NPN M8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BGS-ZM10CN4
ActiveOptex FA
BGS SENSOR LED 10-100MM NPN M8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BGS-ZM10CN4 |
|---|---|
| Adjustment Type | Adjustable, 8-Turn Potentiometer |
| Connection Method | Connector, M8 |
| Ingress Protection | IP67 |
| Light Source | Red LED |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | NPN - Open Collector, Light-ON\Dark-ON |
| Response Time | 500 µs |
| Sensing Distance [Max] | 3.937 " |
| Sensing Distance [Max] | 100 mm |
| Sensing Distance [Min] | 10 mm |
| Sensing Distance [Min] | 0.394 " |
| Sensing Method | Background Suppression |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 199.80 | |
Description
General part information
BGS-ZM10CN4
Background Suppression Optical Sensor 0.394" ~ 3.937" (10mm ~ 100mm) NPN - Open Collector, Light-ON\Dark-ON
