SIT3372AI-4E2-30NX133.516483
ActiveSiTime
MEMS OSC VCXO 133.516483MHZ HCSL
Deep-Dive with AI
Search across all available documentation for this part.
SIT3372AI-4E2-30NX133.516483
ActiveSiTime
MEMS OSC VCXO 133.516483MHZ HCSL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SIT3372AI-4E2-30NX133.516483 |
|---|---|
| Absolute Pull Range (APR) | 370 ppm |
| Base Resonator | MEMS |
| Current - Supply (Max) [Max] | 97 mA |
| Frequency | 133.516483 MHz |
| Frequency Stability | 25 ppm |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | HCSL |

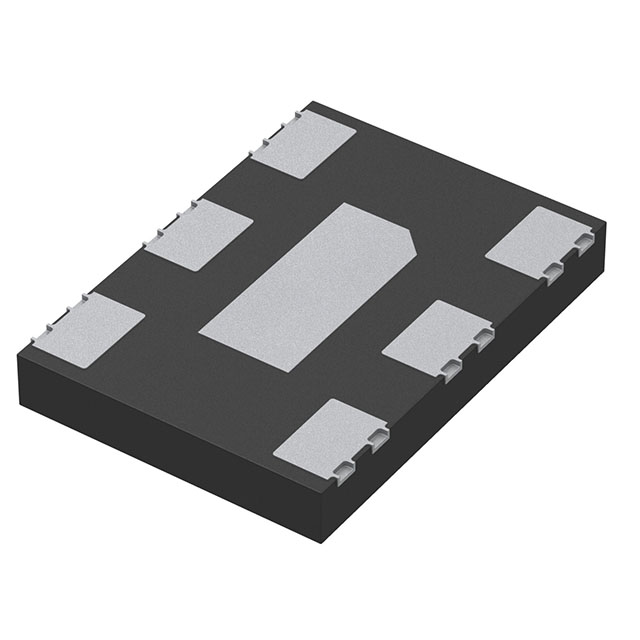

| Package / Case | 6-SMD, No Lead Exposed Pad |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | VCXO |
| Voltage - Supply | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 15.87 | |
| 10 | $ 13.71 | |||
| 50 | $ 12.39 | |||
| 100 | $ 11.86 | |||
| 500 | $ 10.72 | |||
Description
General part information
SIT3372AI-4E2-30NX133.516483
133.516483 MHz VCXO HCSL Oscillator 3V 6-SMD, No Lead Exposed Pad
