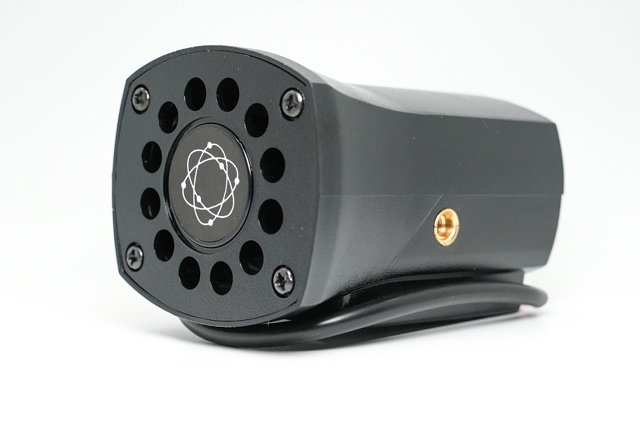

BPS6055L-12-C

Active

Intervox

BUZZER PIEZO 12V 85X60MM BRACKET

Search across all available documentation for this part.

Active

Intervox

BUZZER PIEZO 12V 85X60MM BRACKET

Technical Specifications

Parameters and characteristics for this part

Specification	BPS6055L-12-C

Current - Supply	350 mA
Driver Circuitry	Internally Driven, Indicator
Frequency [Max]	3 kHz
Frequency [Min]	2.5 kHz
Height - Seated (Max) [Max] [z]	2.165 in
Height - Seated (Max) [Max] [z]	55 mm
Input Type	DC
Mounting Type	Bracket Mount
Operating Mode	Siren
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Port Location	User Defined
Size / Dimension [x]	3.346 in
Size / Dimension [x]	85 mm
Size / Dimension [y]	60 mm
Size / Dimension [y]	2.362 in
Sound Pressure Level (SPL)	115 dB
Technology	Piezo
Termination	Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	12 V
Voltage Range [Min]	6 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Buzzers Indicator, Internally Driven Piezo 12 V 350mA 2.5kHz ~ 3kHz 115dB @ 12V, 100cm Bracket Mount Wire Leads
