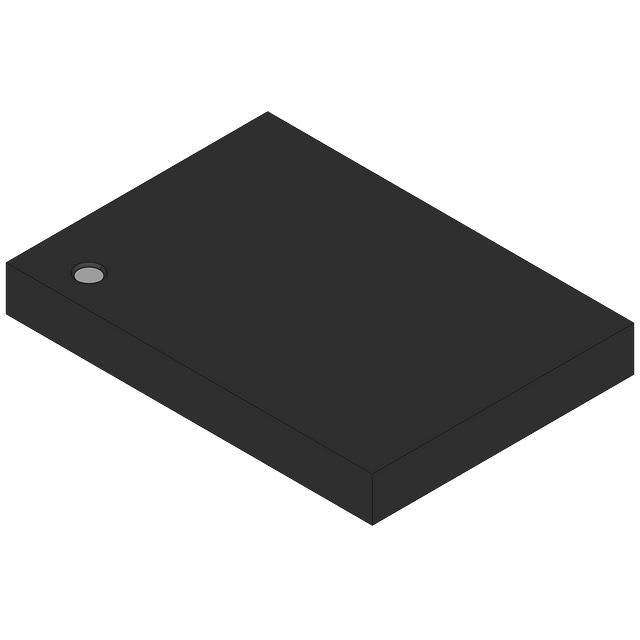

DSC1123AI1-156.2500T
ObsoleteDallas Semiconductor
MEMS OSC XO 156.2500MHZ LVDS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DSC1123AI1-156.2500T
ObsoleteDallas Semiconductor
MEMS OSC XO 156.2500MHZ LVDS SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSC1123AI1-156.2500T |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Disable) (Max) [Max] | 22 mA |
| Current - Supply (Max) [Max] | 32 mA |
| Frequency | 156.25 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 0.035 " |
| Height - Seated (Max) [Max] [z] | 0.9 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LVDS |
| Package / Case | 6-SMD, No Lead Exposed Pad |
| Ratings | AEC-Q100 |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | XO (Standard) |
| Voltage - Supply [Max] | 3.63 V |
| Voltage - Supply [Min] | 2.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 143 | $ 2.10 | |
| Strip | 1 | $ 4.10 | ||
| 10 | $ 3.53 | |||
| 50 | $ 3.19 | |||
Description
General part information
DSC1123AI1-156.2500T
156.25 MHz XO (Standard) LVDS Oscillator 2.25V ~ 3.63V Enable/Disable 6-SMD, No Lead Exposed Pad
Documents
Technical documentation and resources
No documents available
