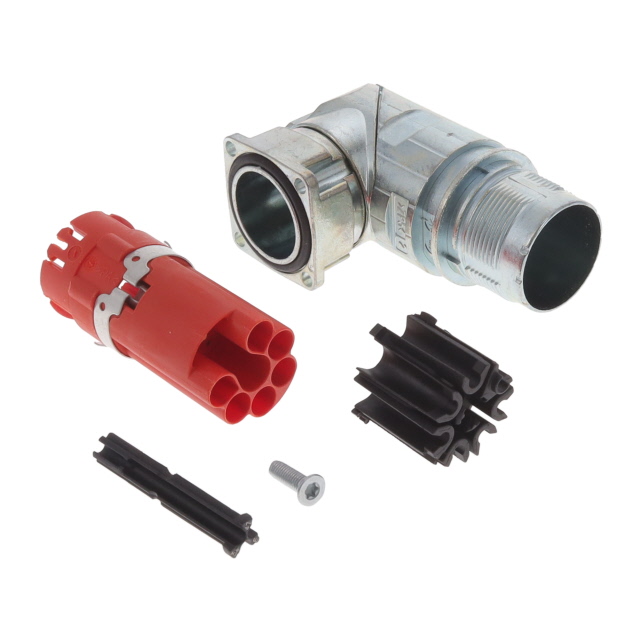

HGC208N00003200000
ActiveTE Intercontec
CONN RCPT HSG MALE 10P PNL MT RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HGC208N00003200000
ActiveTE Intercontec
CONN RCPT HSG MALE 10P PNL MT RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HGC208N00003200000 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Fastening Type | Push-Twist |
| Features | Backshell, Rotatable |
| Housing Color | Silver |
| Ingress Protection | IP66/IP67 |
| Insert Material | Polybutylene Terephthalate (PBT), Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Mounting Type | Right Angle, Panel Mount |
| Note | Contacts Not Included |
| Number of Positions | 10 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Shell Finish | Nickel |
| Shell Material | Brass and Zinc Die Cast |
| Shell Size - Insert | M23-10 |
| Shielding | Shielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 35.93 | |
| 10 | $ 31.46 | |||
| 40 | $ 29.13 | |||
| 80 | $ 28.16 | |||
| 120 | $ 25.90 | |||
| 280 | $ 26.61 | |||
Description
General part information
HGC208N00003200000
10 (3 + 6 Power + PE) Position Circular Connector Receptacle Housing Panel Mount, Right Angle Backshell, Rotatable
