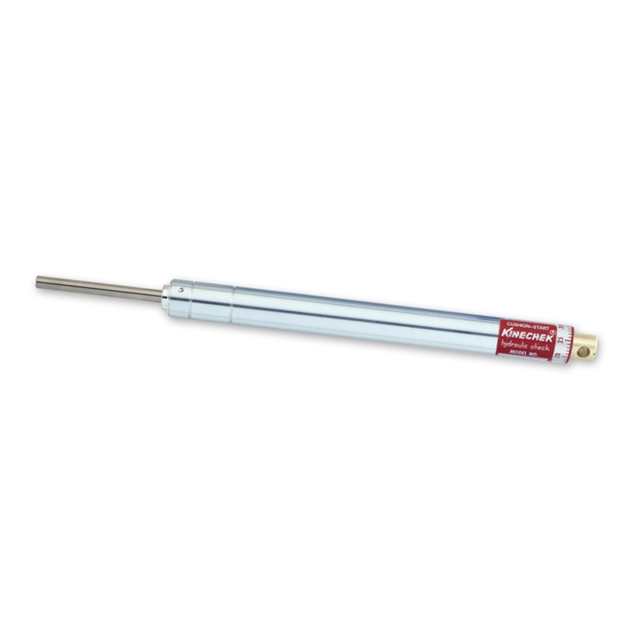

1102-31-3
ActiveDeschner Corporation
3" STROKE CUSHION START SPEED CO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1102-31-3
ActiveDeschner Corporation
3" STROKE CUSHION START SPEED CO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1102-31-3 |
|---|---|
| Actuation Force | 22.2 N |
| Actuation Force | 5 lbf |
| Features | Cushioned Start |
| Impact Capacity per Cycle | 29.38 J |
| Impact Capacity per Cycle | 260 inlb |
| Length - Extended [x] | 352.3 mm |
| Length - Extended [x] | 13.87 in |
| Operation | Single-Acting, Push |
| Reset Force | 4 lbf |
| Reset Force | 17.8 N |
| Reset Time | 0.235 s |
| Stroke Length | 76.2 mm |
| Stroke Length | 3 in |
| Technology | Hydraulic |
| Type | Speed Controller |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 409.23 | |
Description
General part information
1102-31-3
3" STROKE CUSHION START SPEED CO
